X935F

Tesla Part Number

1097116-00-A

Connector

DELPHI 33245684

Color

WH

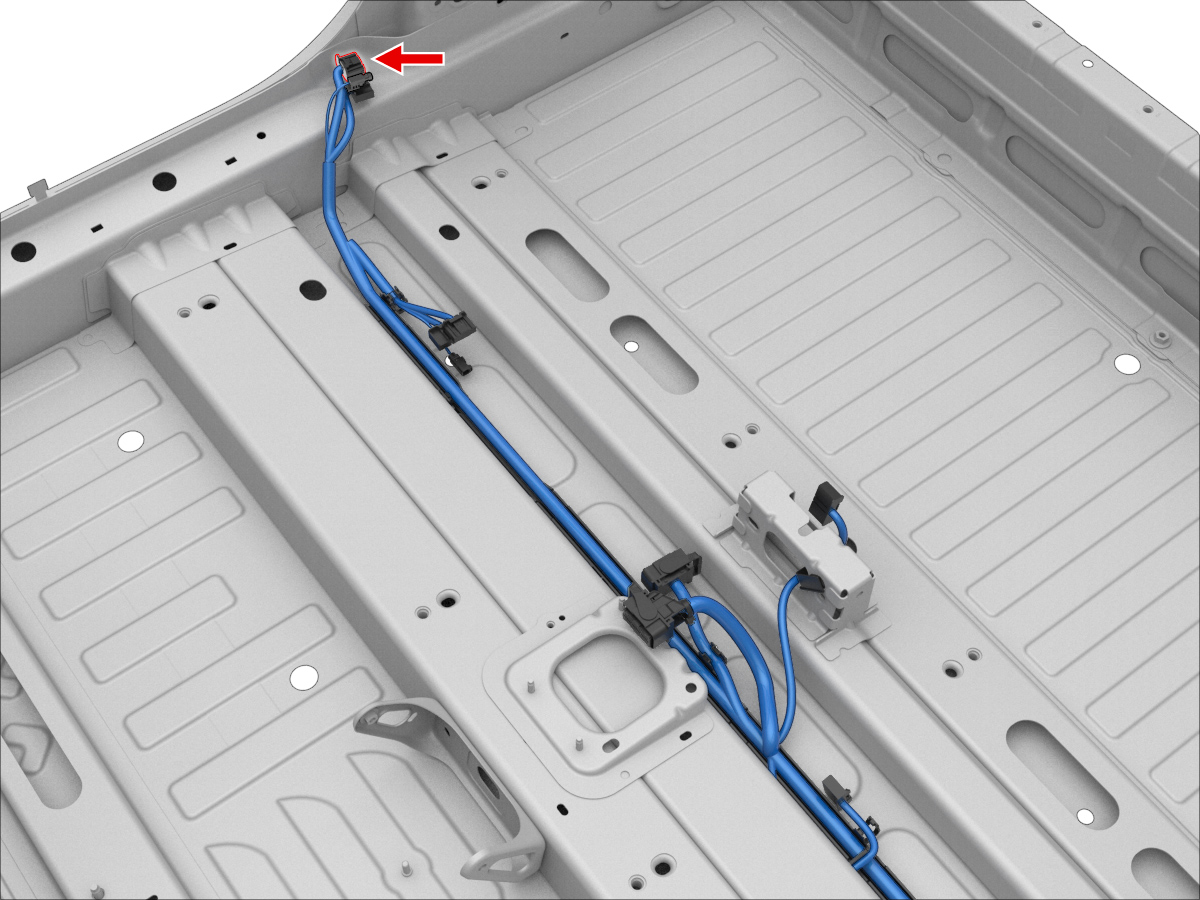

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X096	8
2	SUMITOMO	8240-0182	0.64x0.64F	BK	0.13			X096	7
3	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X201	44
4	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X201	43
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	33
6	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X201	34
7	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X201	13
8	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X201	14
9	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13
10	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13
11	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	58
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X201	37
13	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X201	38
14	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	5
15	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	6
16	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X201	16
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	15
18	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X201	49
19	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	50
20	unused
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X201	53
