X936M

Tesla Part Number

1048098-03-A

Connector

YAZAKI 7286-1918-90

Color

BU

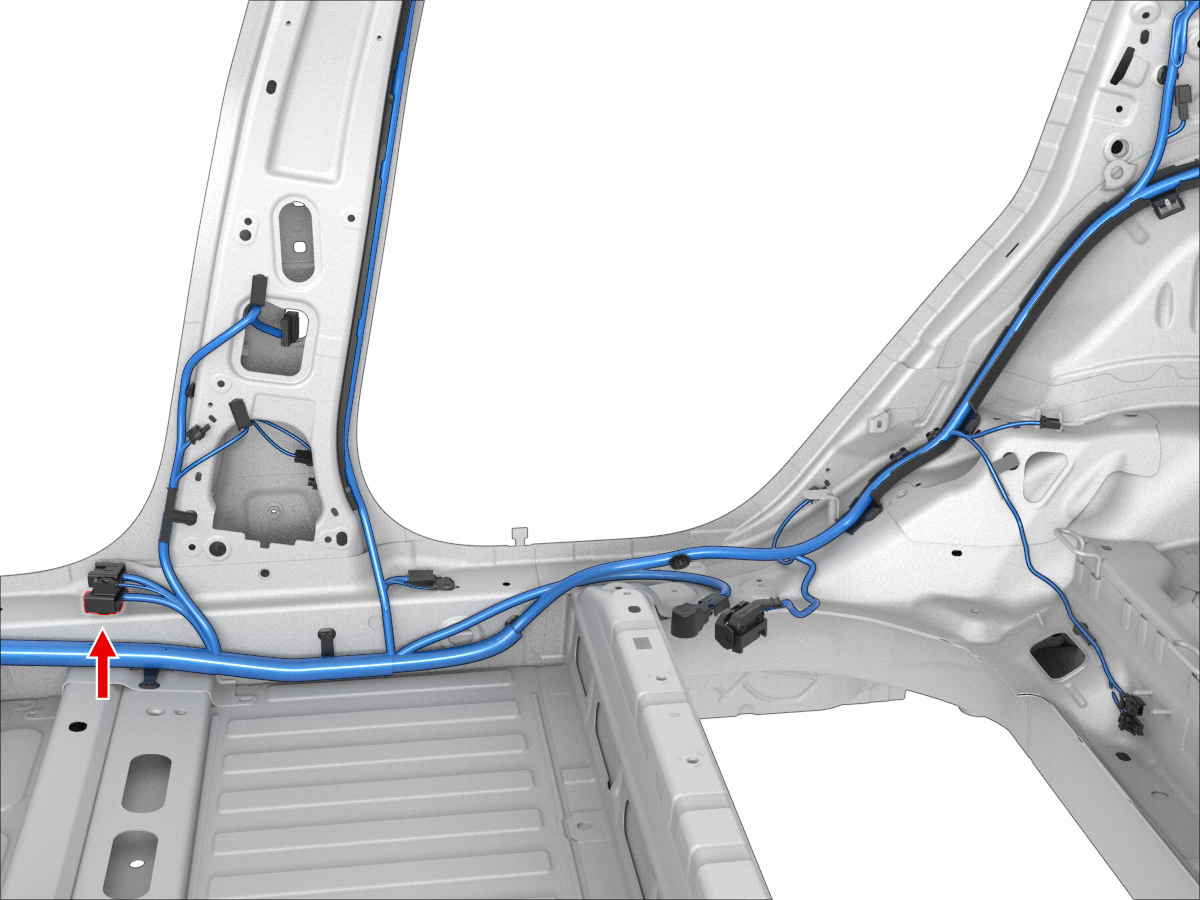

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X561	7
2	SUMITOMO	8230-4878	0.64x0.64M	RD	0.13			X167A	6
3	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35
4	SUMITOMO	8100-3623	0.64x0.64M	BK	0.50			X171	1
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X171	5
6	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13			X167A	5
7	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X494	4
8	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13			X167A	4
9	SUMITOMO	8230-4878	0.64x0.64M	BN	0.13			X167A	1
10	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13			X050	45
11	SUMITOMO	8100-3623	0.64x0.64M	OG	0.50			X171	16
12	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X563	7
13	SUMITOMO	8230-4878	0.64x0.64M	RD	0.13			X098	11
14	SUMITOMO	8230-4925	1.5x0.6M	BU	0.50			X171	5
15	SUMITOMO	8230-4923	1.5x0.6M	WH	2.00			X561	8
16	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13			X167A	2
17	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13			X098	10
18	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X171	2
19	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X171	6
20	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13			X494	3
21	SUMITOMO	8230-4878	0.64x0.64M	VT	0.13			X167A	3
22	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X050	44
23	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X171	15
24	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X563	8
25	SUMITOMO	8230-4878	0.64x0.64M	RD	0.13			X098	13
26	SUMITOMO	8230-4925	1.5x0.6M	YE	0.50			X171	6
