X369

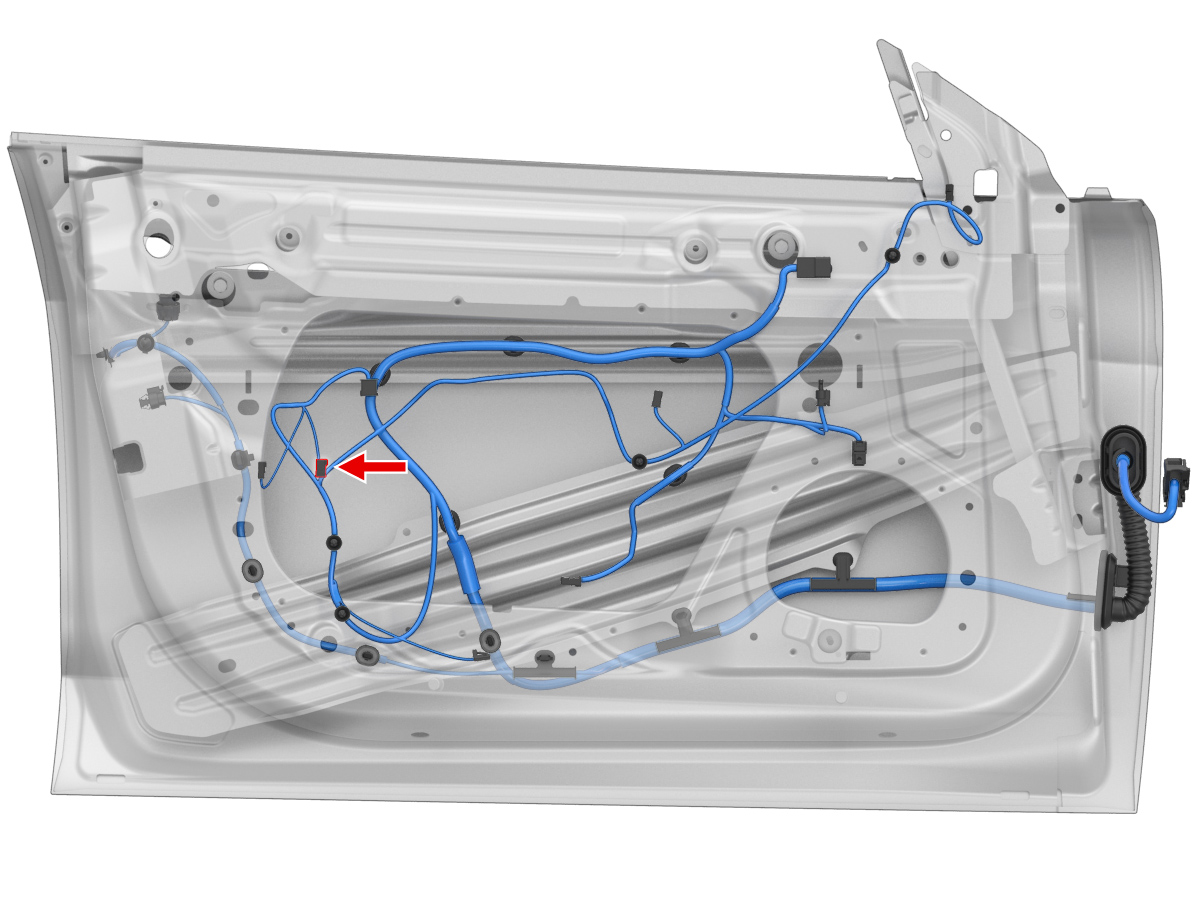

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13787415 | 0.64x0.64F | GY | 0.13 | X033A | 11 | ||
| 2 | DELPHI | 13787415 | 0.64x0.64F | GN | 0.13 | X033A | 22 | ||
| 3 | DELPHI | 13580633 | 0.64x0.64F | BK | 0.35 |
