X010

Tesla Part Number

1090045-00-A

Connector

SUMITOMO 6098-8119

Color

GY

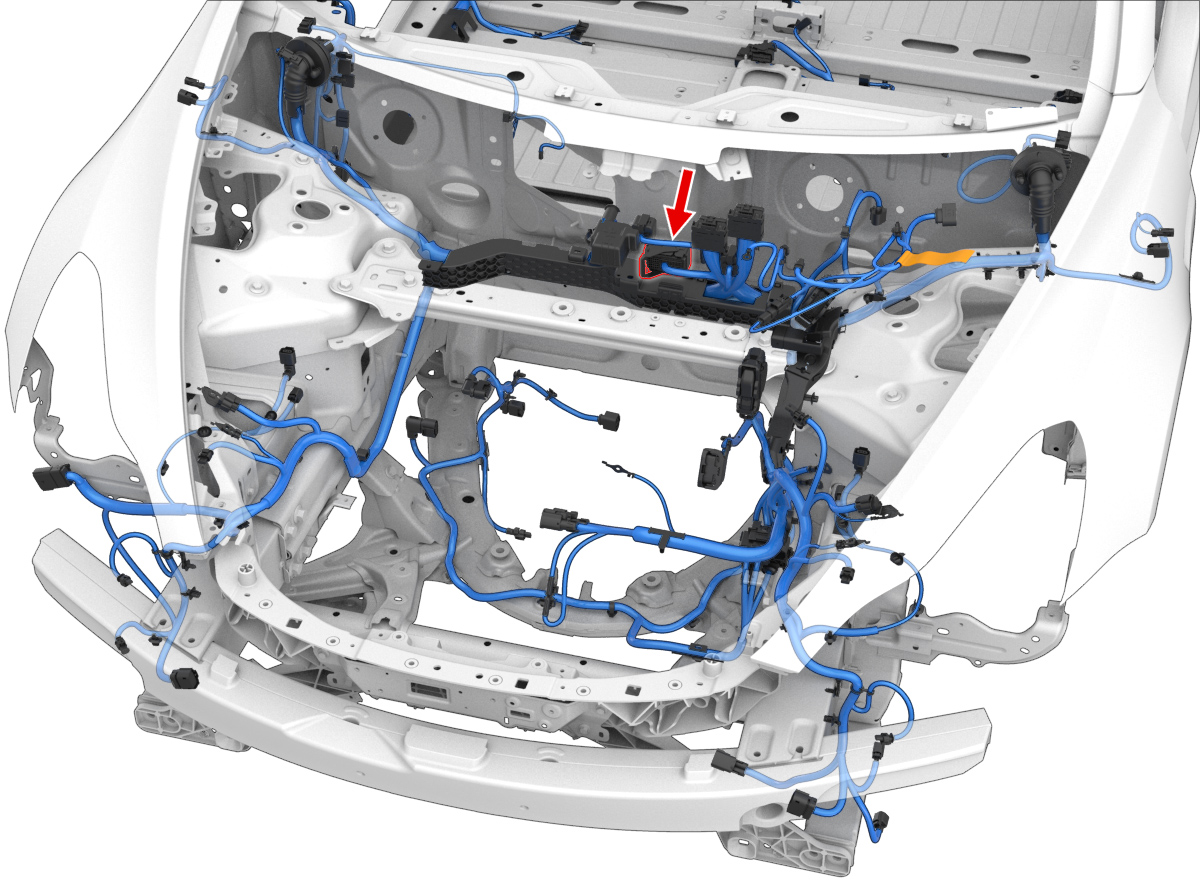

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X906F	16
2	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X301	3
3	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X906F	14
4	unused
5	unused
6	unused
7	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13
8	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13
9	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X199_1	1
10	unused
11	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X192	1
12	unused
13	unused
14	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X523	2
15	SUMITOMO	8240-0215	1.5x0.64F	OG	0.35			X905F	2
16	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X906F	7
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X906F	15
18	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X905F	8
19	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X905F	7
20	unused
21	unused
22	unused
23	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X057	3
24	unused
25	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X304	1
26	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X906F	12
27	unused
28	unused
29	SUMITOMO	8240-0213	1.5x0.64F	RD	1.00			X901M	1
30	unused
31	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X198_1	1
32	SUMITOMO	8240-0214	1.5x0.64F	WH	2.00
33	unused
34	SUMITOMO	8240-0339	1.5x0.64F	YE	0.13			X911M	11
35	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X911M	10
36	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X523	1
37	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X071	4
38	unused
39	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X159	2
40	unused
41	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X300	1
42	unused
43	unused
44	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X057	6
45	unused
46	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00			X170	5
47	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X906F	13
48	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X301	2
49	unused
50	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X906F	11
51	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X906F	10
52	SUMITOMO	8240-0213	1.5x0.64F	VT	1.00			X911M	1
