X011

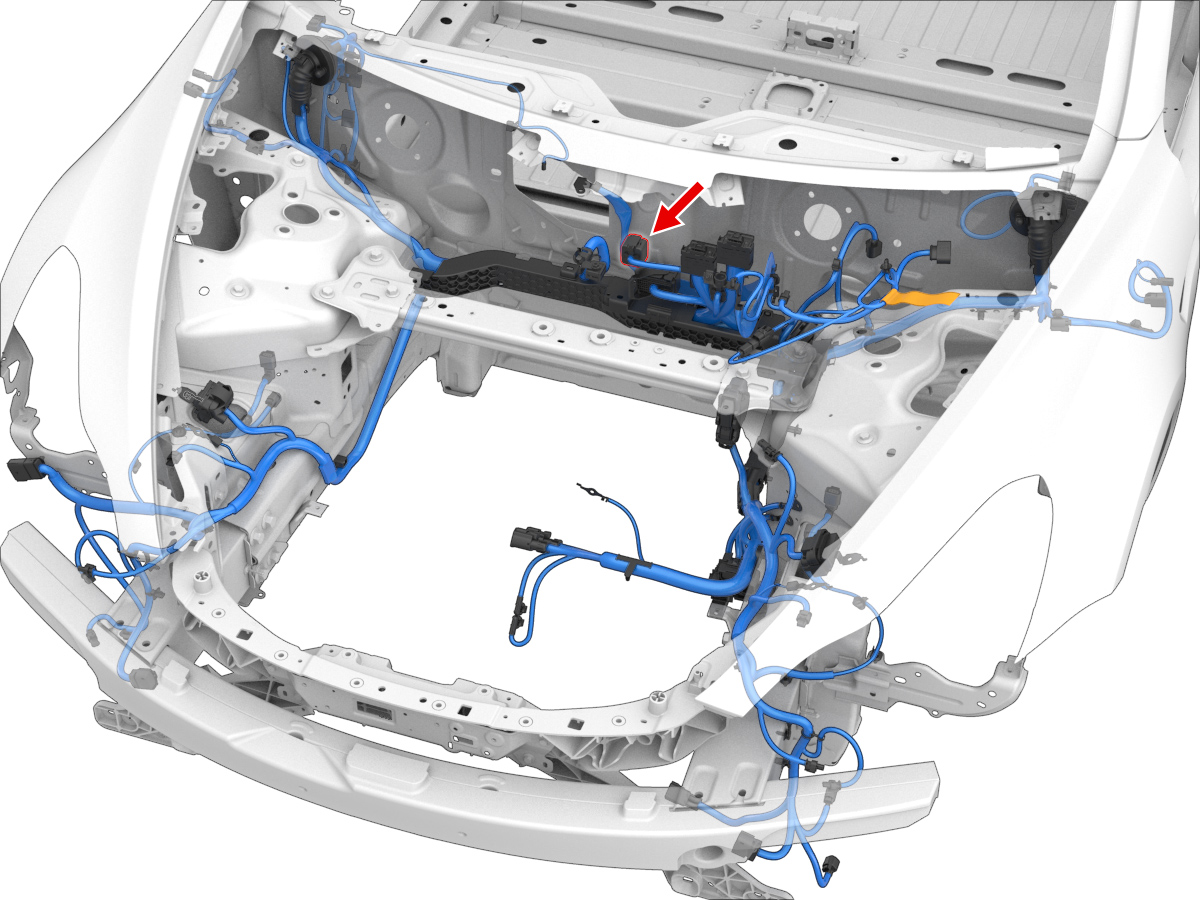

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4122-02 | 6.3x0.8F | OG | 4 | X151 | 1 | ||
| 2 | SI | 0.50 | |||||||
| 3 | YAZAKI | 7116-4121-02 | 6.3x0.8F | VT | 2.50 | X300 | 4 | ||
| 4 | YAZAKI | 7116-4124-02 | 6.3x0.8F | RD | 5.00 | X525 | 1 | ||
| 5 | YAZAKI | 7116-4124-02 | 6.3x0.8F | YE | 5.00 | X525 | 2 | ||
| 6 | YAZAKI | 7116-4124-02 | 6.3x0.8F | BU | 5.00 | X525 | 3 |
