X013

Tesla Part Number

1090047-01-A

Connector

SUMITOMO 6098-7812

Color

GY

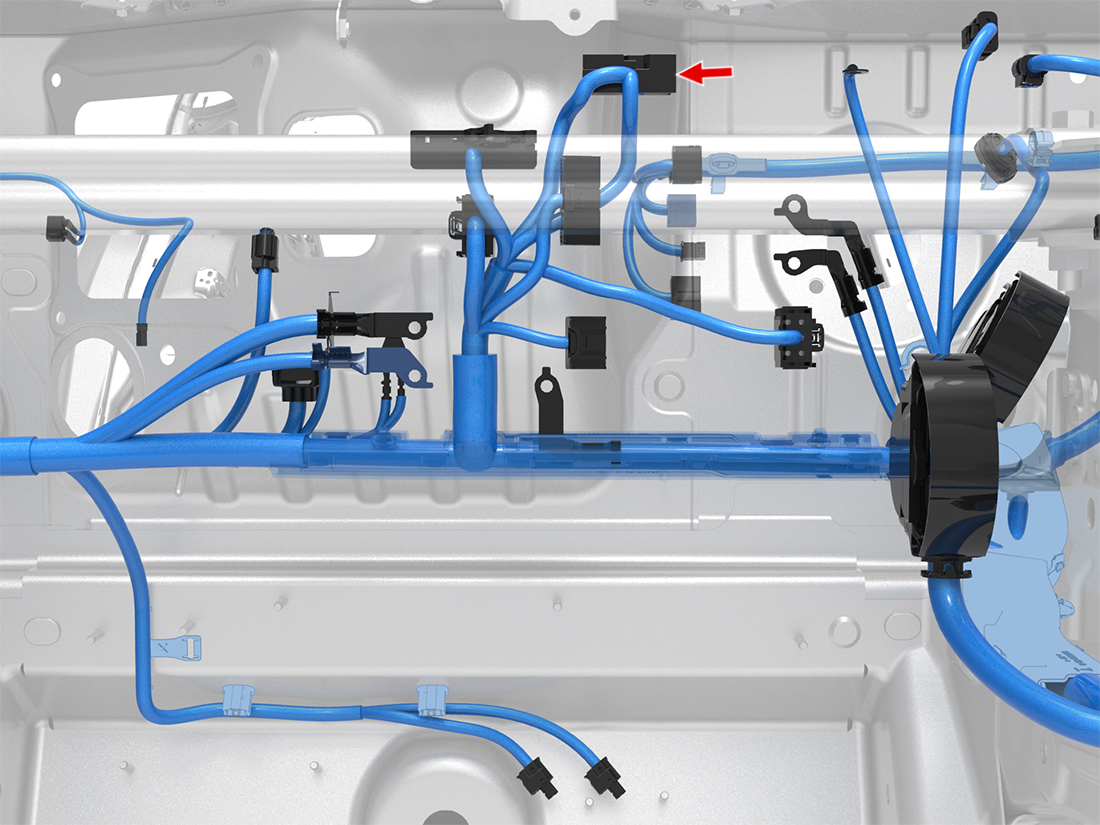

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X009	2
2	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X901M	8
3	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13
4	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13
5	unused
6	unused
7	SUMITOMO	8240-0213	1.5x0.64F	RD	1.00			X261	1
8	SUMITOMO	8240-0339	1.5x0.64F	GN	0.13			X261	2
9	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X901M	13
10	SUMITOMO	8240-0215	1.5x0.64F	OG	0.35			X901M	14
11	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X269	1
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X009	1
13	unused
14	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X037	8
15	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13			X037	9
16	unused
17	unused
18	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X268	1
19	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X901M	12
20	SUMITOMO	8240-0215	1.5x0.64F	SI	0.35
21	SUMITOMO	8240-0339	1.5x0.64F	BU	0.13			X260	2
22	SUMITOMO	8240-0213	1.5x0.64F	WH	1.00			X260	1
23	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X901M	11
24	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X150	20
25	unused
26	unused
27	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X901M	9
28	unused
29	unused
30	unused
31	unused
32	unused
33	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X193A	1
34	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X906F	3
35	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X906F	1
36	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X906F	2
37	unused
