X030

Tesla Part Number

1090045-01-A

Connector

SUMITOMO 6098-8363

Color

BK

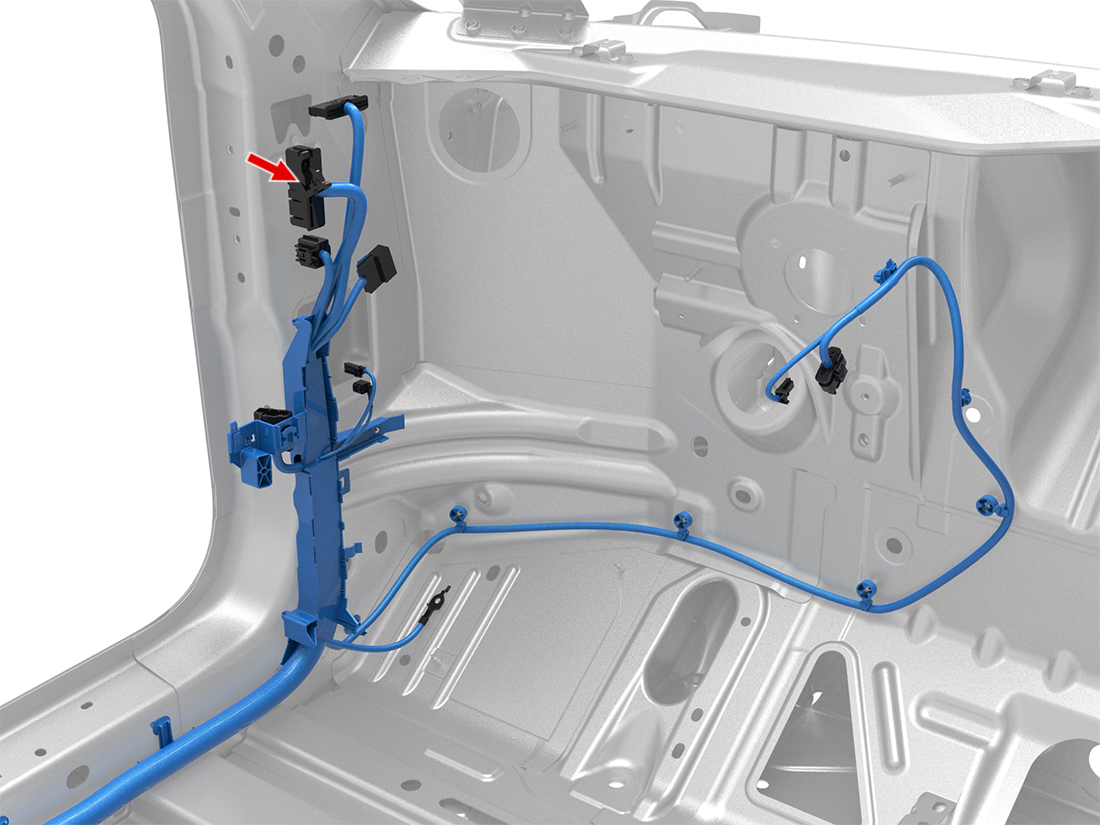

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X924M	4
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35
3	unused
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X225	1
6	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X225	2
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X201	17
8	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X201	18
9	unused
10	unused
11	unused
12	unused
13	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			X930F	26
14	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X201	25
15	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X201	26
16	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X981M	16
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X296	1
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X924M	16
21	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X924M	6
22	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X924M	5
23	unused
24	SUMITOMO	8240-0214	1.5x0.64F	WH	2.00			X936F	15
25	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X936F	1
26	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X950M	9
27	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X676	2
28	SUMITOMO	8240-0215	1.5x0.64F	OG	0.35			X096	10
29	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X924M	10
30	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X924M	9
31	unused
32	unused
33	unused
34	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X497	4
35	SUMITOMO	8240-0339	1.5x0.64F	YE	0.13			X930F	4
36	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X981M	19
37	unused
38	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13
39	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13
40	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X493	1
41	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X270	5
