X031

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

WH

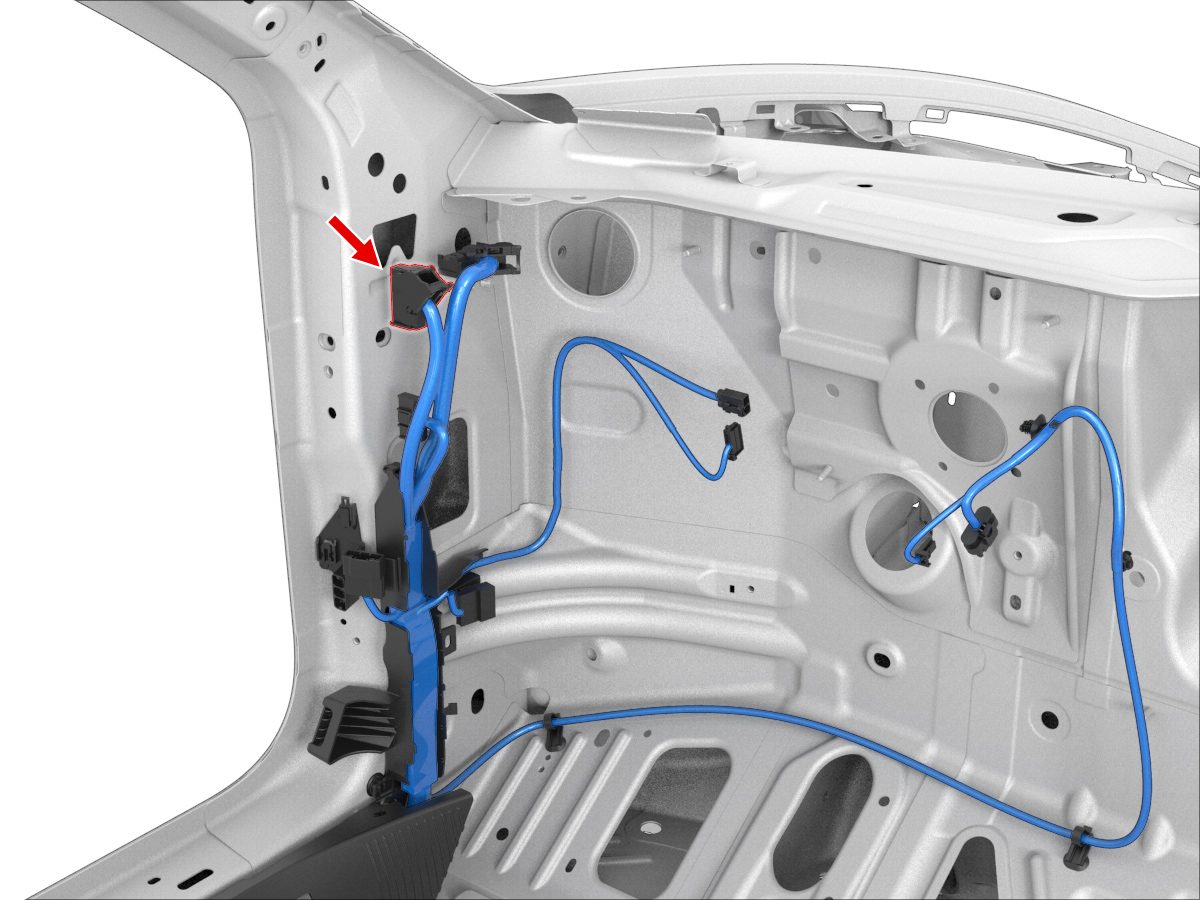

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	unused
5	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X930F	3
6	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X930F	11
7	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X685	1
8	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X685	2
9	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X685	3
10	unused
11	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X148	1
12	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X673	1
13	unused
14	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X924M	3
15	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X924M	13
16	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X924M	15
17	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X924M	8
18	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13
19	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13
20	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X981M	2
21	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X981M	18
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X041	2
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X930F	2
25	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X930F	8
26	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35
27	unused
28	unused
29	unused
30	unused
31	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X950M	8
32	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X950M	7
33	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X950M	6
34	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X950M	10
35	unused
36	unused
37	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X924M	2
38	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X924M	14
39	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X924M	17
40	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X924M	7
