X033

Tesla Part Number

1090047-00-A

Connector

SUMITOMO 6098-7746

Color

WH

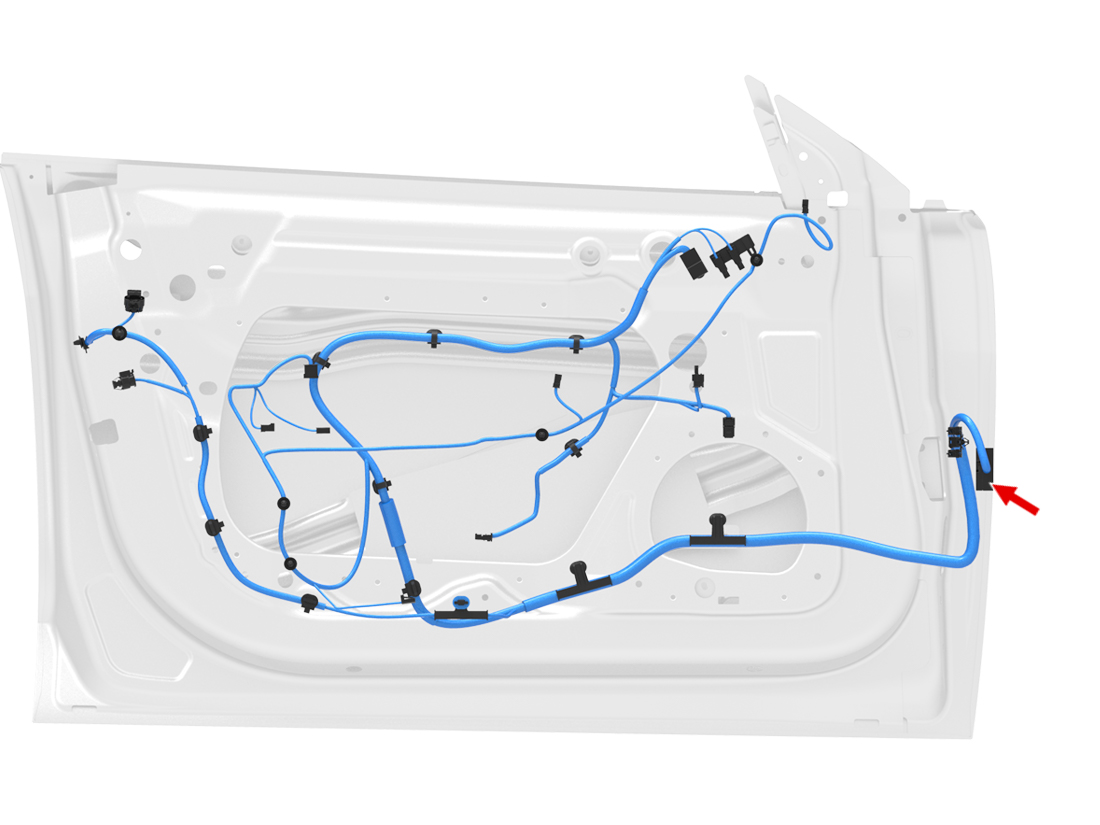

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X376	14
2	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X366	2
3	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X367	4
4	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X376	4
5	unused
6	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13			X369	1
7	SUMITOMO	8240-0213	1.5x0.64F	WH	1.00			X567	1
8	SUMITOMO	8240-0213	1.5x0.64F	BU	1.00			X567	2
9	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X371	1
10	SUMITOMO	8240-0339	1.5x0.64F	GN	0.13			X376	2
11	SUMITOMO	8240-0339	1.5x0.64F	BU	0.13			X376	10
12	unused
13	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X376	3
14	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X376	8
15	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X369	2
16	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X365	3
17	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X367	2
18	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X376	1
19	unused
20	SUMITOMO	8240-0339	1.5x0.64F	GN	0.13			X373	2
21	SUMITOMO	8240-0339	1.5x0.64F	BU	0.13			X373	4
22	SUMITOMO	8240-0339	1.5x0.64F	BK	0.13			X373	3
23	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50
24	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50
25	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X373	1
26	SUMITOMO	8240-0214	1.5x0.64F	OG	1.50			X373	5
27	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50
28	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X376	9
29	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X370	1
30	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X365	2
31	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X365	4
32	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X366	3
33	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35
34	SUMITOMO	8240-0339	1.5x0.64F	GY	0.13			X376	12
35	SUMITOMO	8240-0339	1.5x0.64F	YE	0.13			X376	5
36	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X204	1
37	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X204	2
