X035

Tesla Part Number

1090047-01-A

Connector

SUMITOMO 6098-7812

Color

GY

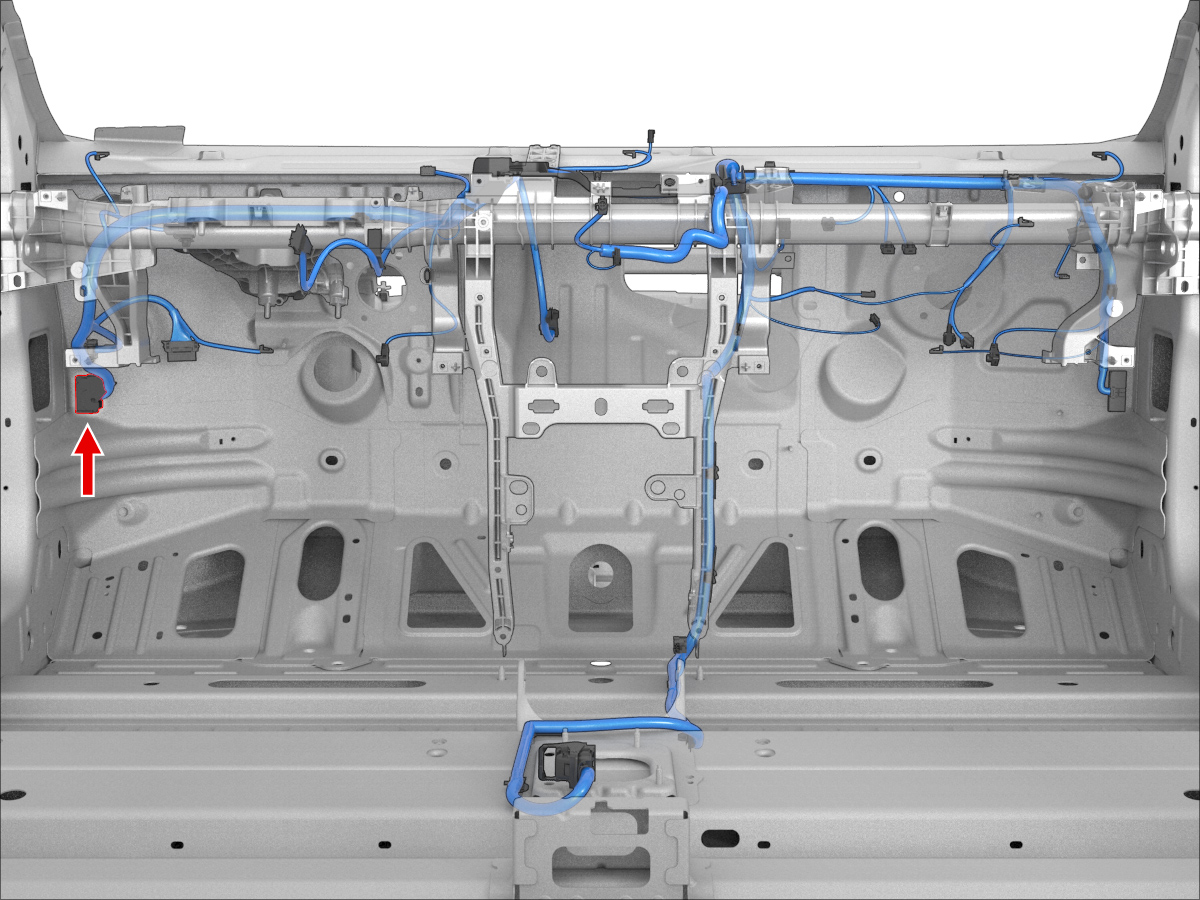

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X180	1
2	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X182	11
3	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X182	7
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X180	2
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X180	3
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X180	14
7	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X182	6
8	SUMITOMO	8240-0215	1.5x0.64F	OG	0.50			X182	5
9	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X182	1
10	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X182	2
11	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00
12	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X200	10
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X182	12
14	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X182	8
15	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X181	8
16	unused
17	unused
18	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35
19	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X200	25
20	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X181	3
21	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X200	16
22	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X200	15
23	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X180	7
24	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X280	1
25	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X181	11
26	unused
27	unused
28	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X200	9
29	unused
30	unused
31	unused
32	unused
33	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X181	16
34	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X181	6
35	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X181	14
36	unused
37	unused
