X094

Tesla Part Number

1085876-00-A

Connector

AMP 1-2282337-1

Color

BK

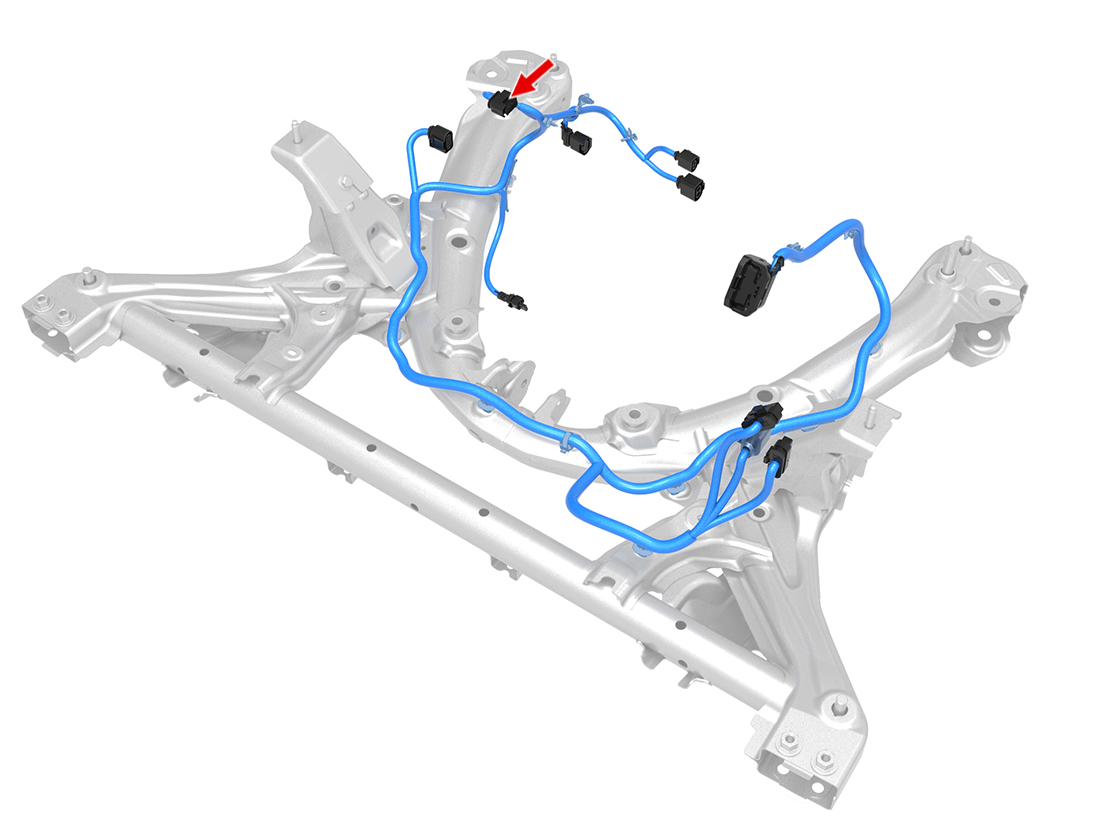

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	2141970-2	1.2x0.6FS	WH	0.13	KOSTAL	10080436	X093	28
2	unused
3	AMP	2141970-2	1.2x0.6FS	YE	0.13	KOSTAL	10080436	X093	26
4	AMP	2141970-2	1.2x0.6FS	GN	0.13	KOSTAL	10080436	X093	17
5	AMP	2141970-2	1.2x0.6FS	VT	0.13	KOSTAL	10080436	X093	8
6	AMP	2141970-2	1.2x0.6FS	GY	0.13	KOSTAL	10080436	X093	18
7	unused
8	AMP	2141970-2	1.2x0.6FS	BU	0.13	KOSTAL	10080436	X093	16
9	AMP	2141970-2	1.2x0.6FS	RD	0.13	KOSTAL	10080436	X093	7
10	AMP	2141970-2	1.2x0.6FS	BN	0.13	KOSTAL	10080436	X093	27
