X122A

Tesla Part Number
1108466-00-A
Connector
AMP 2177586-1
Color
BK

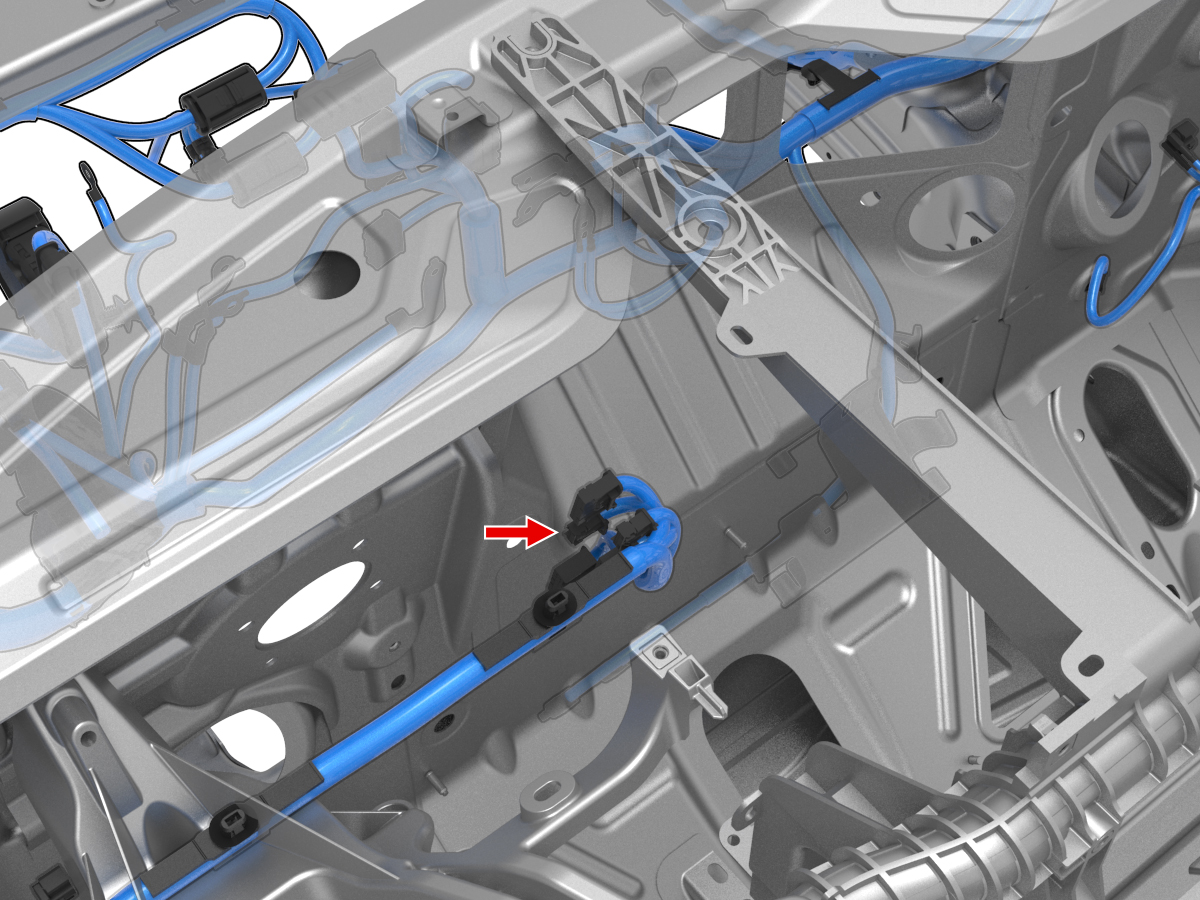

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2unused
3AMP2-1703930-10.50x0.40FBN0.35X172A1
4AMP2-1703930-10.50x0.40FGN0.35X172A2
5unused
6unused
7unused
8unused
