X148

Tesla Part Number
1038935-00-A
Connector
AMP 2109233-2
Color
BK

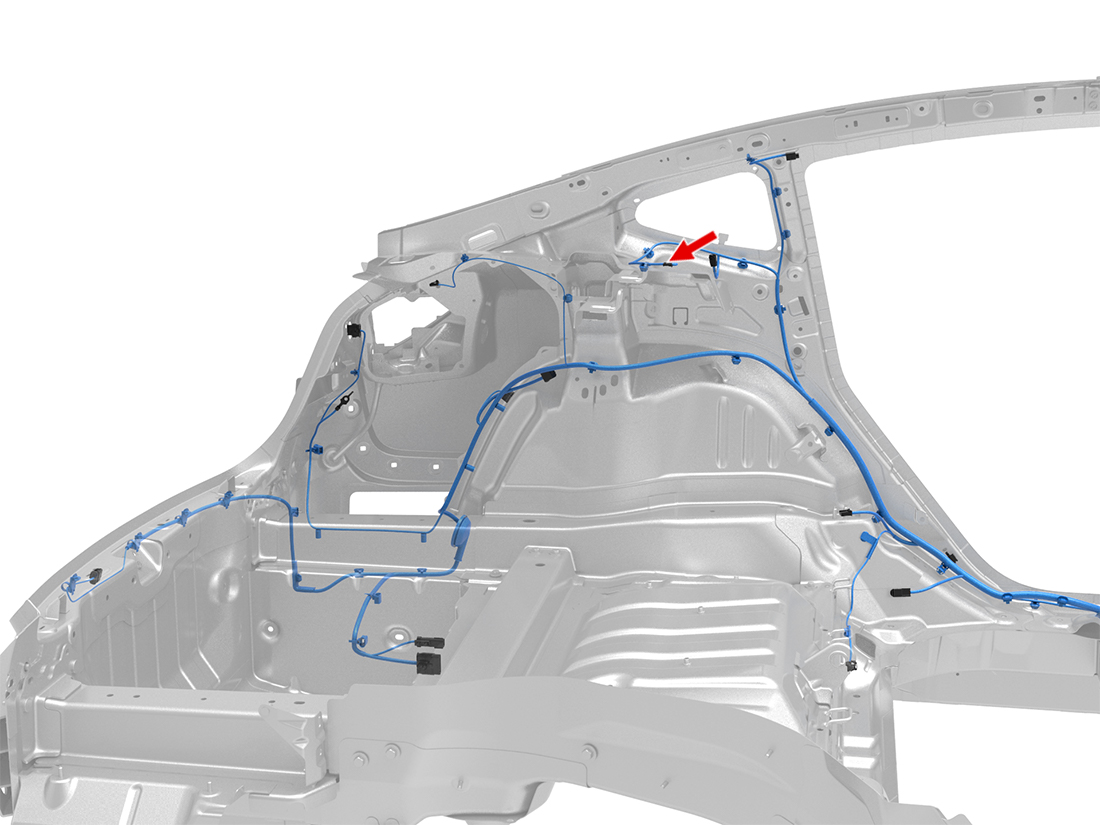

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1355717-10.63x0.63FYE0.13X03111
2unused
3AMP1355717-10.63x0.63FGY0.13
4AMP1355717-10.63x0.63FBN0.13
5AMP5-963715-10.63x0.63FBK0.50G0411
6unused
