X168A

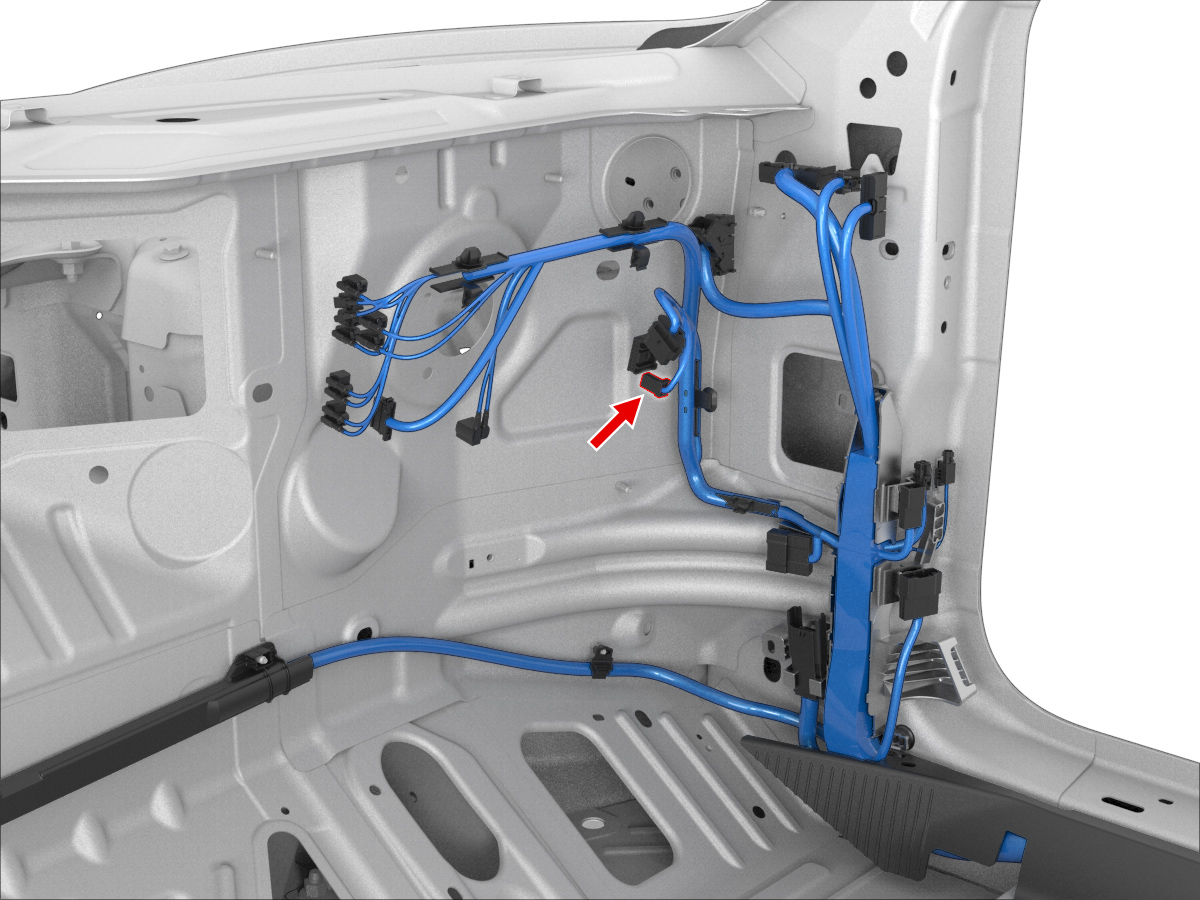

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.50 | G032 | 1 | |||||
| 2 | RD | 0.35 | |||||||
| 3 | BK | 0.50 | G032 | 1 | |||||
| 4 | BN | 0.35 | X952M | 16 |
