X170A

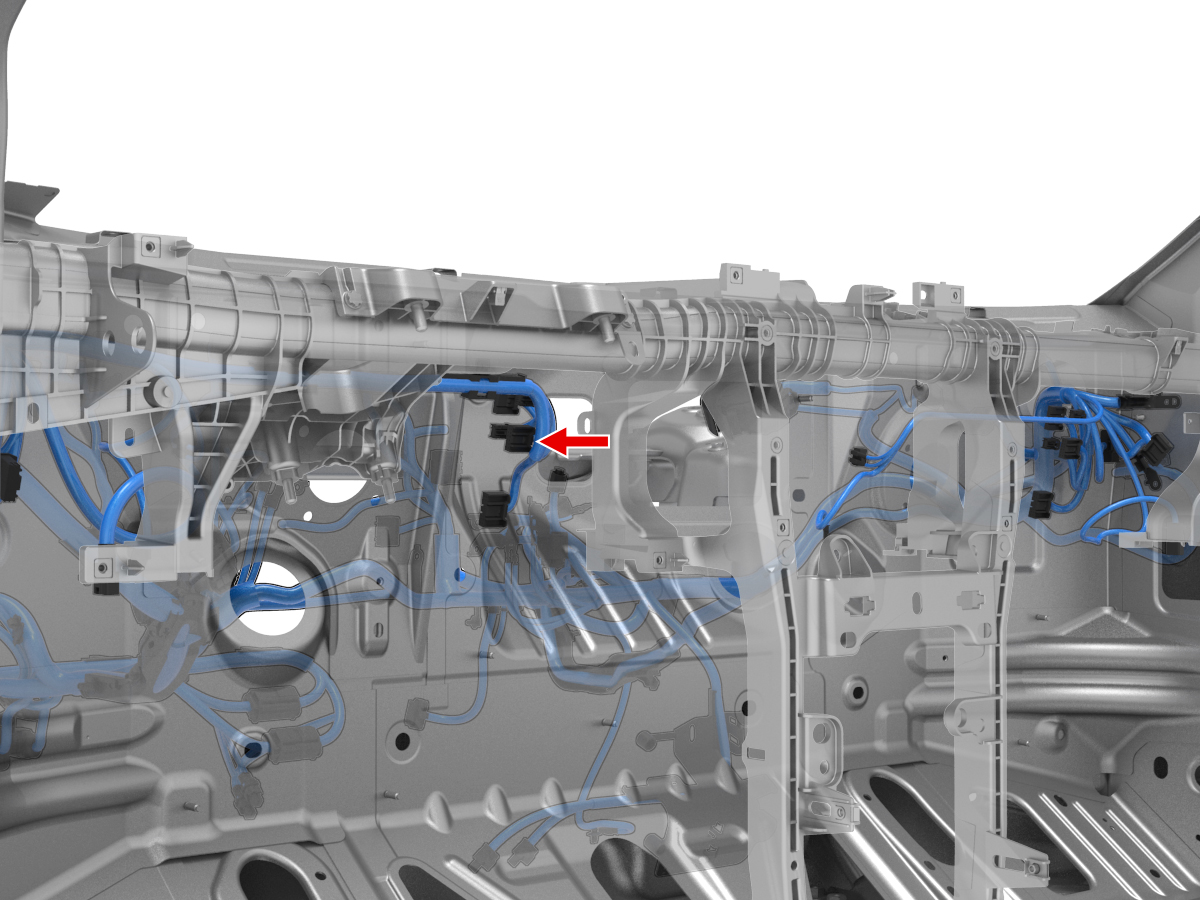

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0339 | 1.5x0.64F | VT | 0.13 | ||||
| 2 | SUMITOMO | 8240-0339 | 1.5x0.64F | RD | 0.13 | ||||
| 3 | SUMITOMO | 8240-0339 | 1.5x0.64F | BU | 0.13 | ||||
| 4 | SUMITOMO | 8240-0214 | 1.5x0.64F | GN | 1.50 | X012 | 1 | ||
| 5 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD | 2.00 | X010 | 46 | ||
| 6 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.35 | X120A | 1 | ||
| 7 | SUMITOMO | 8240-0339 | 1.5x0.64F | WH | 0.13 | ||||
| 8 | SUMITOMO | 8240-0339 | 1.5x0.64F | YE | 0.13 | ||||
| 9 | SUMITOMO | 8240-0339 | 1.5x0.64F | WH | 0.13 | ||||
| 10 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | G015 | 6 | ||
| 11 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | G015 | 5 | ||
| 12 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN | 0.35 | X120A | 11 |
