X182

Tesla Part Number

1042609-00-A

Connector

SUMITOMO 6098-6104

Color

WH

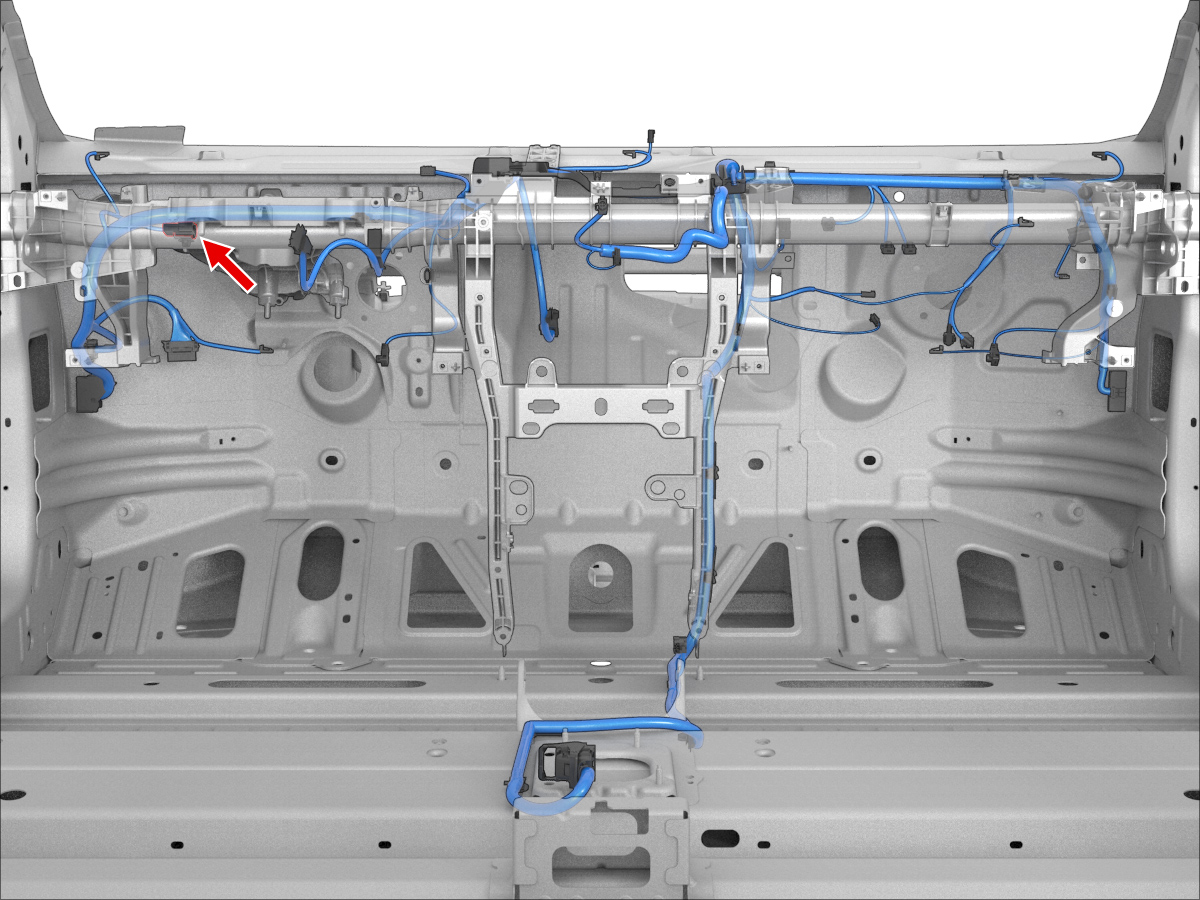

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	BU	0.50			X035	9
2	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X035	10
3	unused
4	unused
5	SUMITOMO	8230-4925	1.5x0.6M	OG	0.50			X035	8
6	SUMITOMO	8230-4925	1.5x0.6M	WH	0.50			X035	7
7	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13			X035	3
8	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X035	14
9	unused
10	unused
11	SUMITOMO	8230-4878	0.64x0.64M	VT	0.13			X035	2
12	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X035	13
