X186

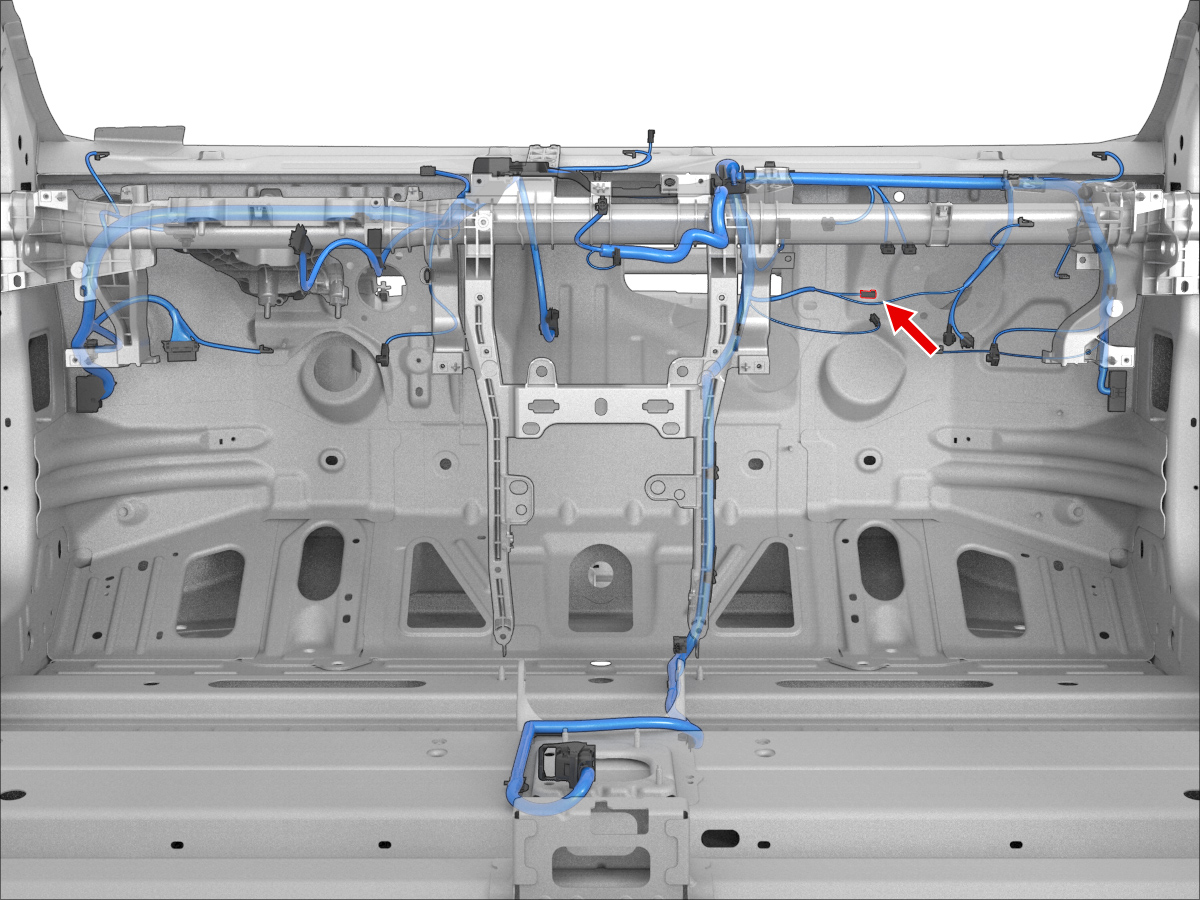

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-963715-1 | 0.63x0.63F | VT | 0.50 | X055 | 37 | ||
| 2 | AMP | 5-963715-1 | 0.63x0.63F | BN | 0.50 | X055 | 20 |
