X192

Tesla Part Number
1078970-00-A
Connector
AMP 2-1718644-1
Color
WH

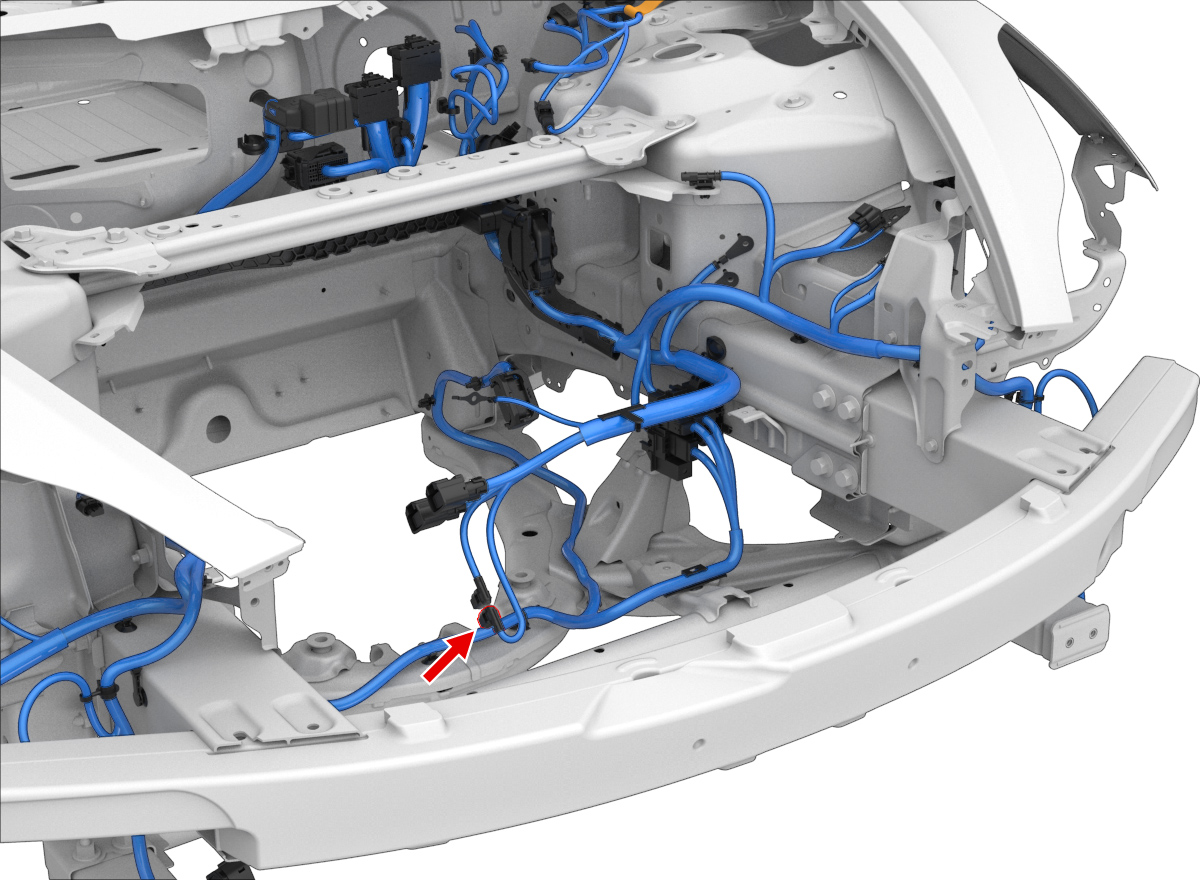

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP7-1452665-11.2x0.6FSGN0.35AMP967067-2X01011
2AMP2141970-11.2x0.6FSBU0.13AMP967067-2
3AMP2141970-11.2x0.6FSWH0.13AMP967067-2
