X201

Tesla Part Number

1046416-00-A

Connector

MOLEX 1600700021

Color

BK

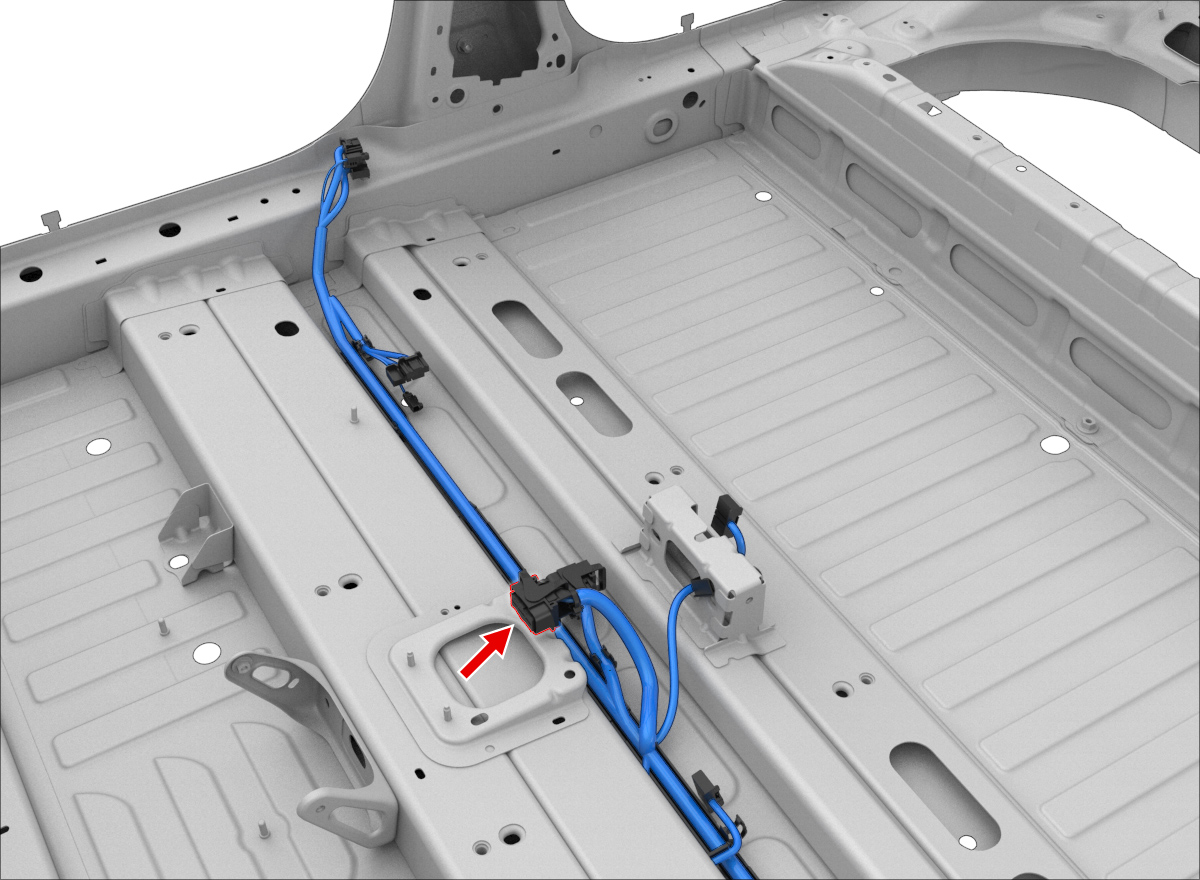

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	unused
5	AMP	2035334-6	0.64x0.8F	GN	0.35	TESLA	MAT-110-206	X935F	14
6	AMP	2035334-6	0.64x0.8F	WH	0.35	TESLA	MAT-110-206	X935F	15
7	AMP	2035334-6	0.64x0.8F	VT	0.35	TESLA	MAT-110-206	X221	2
8	AMP	2035334-6	0.64x0.8F	GN	0.35	TESLA	MAT-110-206	X221	1
9	unused
10	unused
11	unused
12	unused
13	AMP	2035334-6	0.64x0.8F	BN	0.35	TESLA	MAT-110-206	X935F	7
14	AMP	2035334-6	0.64x0.8F	VT	0.35	TESLA	MAT-110-206	X935F	8
15	AMP	2035334-6	0.64x0.8F	YE	0.35	TESLA	MAT-110-206	X935F	17
16	AMP	2035334-6	0.64x0.8F	BN	0.35	TESLA	MAT-110-206	X935F	16
17	AMP	2035334-6	0.64x0.8F	VT	0.35	TESLA	MAT-110-206	X030	7
18	AMP	2035334-6	0.64x0.8F	GY	0.35	TESLA	MAT-110-206	X030	8
19	AMP	2035334-6	0.64x0.8F	OG	0.35	TESLA	MAT-110-206	X909M	7
20	AMP	2035334-6	0.64x0.8F	YE	0.35	TESLA	MAT-110-206	X909M	8
21	unused
22	unused
23	unused
24	unused
25	AMP	2035334-6	0.64x0.8F	WH	0.35	TESLA	MAT-110-206	X030	14
26	AMP	2035334-6	0.64x0.8F	BU	0.35	TESLA	MAT-110-206	X030	15
27	AMP	2035334-6	0.64x0.8F	RD	0.35	TESLA	MAT-110-206	X909M	21
28	AMP	2035334-6	0.64x0.8F	OG	0.35	TESLA	MAT-110-206	X909M	20
29	AMP	2035334-6	0.64x0.8F	GN	0.35	TESLA	MAT-110-206	X909M	18
30	AMP	2035334-6	0.64x0.8F	BU	0.35	TESLA	MAT-110-206	X909M	19
31	AMP	2035334-6	0.64x0.8F	BN	0.35	TESLA	MAT-110-206	X208	2
32	AMP	2035334-6	0.64x0.8F	VT	0.35	TESLA	MAT-110-206	X208	1
33	AMP	2035334-6	0.64x0.8F	GN	0.35	TESLA	MAT-110-206	X935F	5
34	AMP	2035334-6	0.64x0.8F	RD	0.35	TESLA	MAT-110-206	X935F	6
35	unused
36	unused
37	AMP	2035334-6	0.64x0.8F	BU	0.35	TESLA	MAT-110-206	X935F	12
38	AMP	2035334-6	0.64x0.8F	OG	0.35	TESLA	MAT-110-206	X935F	13
39	AMP	2035334-6	0.64x0.8F	YE	0.35	TESLA	MAT-110-206	X217	2
40	AMP	2035334-6	0.64x0.8F	RD	0.35	TESLA	MAT-110-206	X217	1
41	AMP	2035334-1	0.64x0.8F	BK	0.50	TESLA	MAT-110-206	G031	1
42	AMP	2035334-6	0.64x0.8F	RD	0.35	TESLA	MAT-110-206	X936F	25
43	AMP	2035334-6	0.64x0.8F	VT	0.35	TESLA	MAT-110-206	X935F	4
44	AMP	2035334-6	0.64x0.8F	BU	0.35	TESLA	MAT-110-206	X935F	3
45	AMP	2035334-6	0.64x0.8F	GY	0.35	TESLA	MAT-110-206	X206	1
46	AMP	2035334-6	0.64x0.8F	VT	0.35	TESLA	MAT-110-206	X206	2
47	AMP	2035334-6	0.64x0.8F	BN	0.35	TESLA	MAT-110-206
48	AMP	2035334-6	0.64x0.8F	GY	0.35	TESLA	MAT-110-206
49	AMP	2035334-6	0.64x0.8F	BK	0.35	TESLA	MAT-110-206	X935F	18
50	AMP	2035334-6	0.64x0.8F	WH	0.35	TESLA	MAT-110-206	X935F	19
51	AMP	2035334-6	0.64x0.8F	BU	0.35	TESLA	MAT-110-206	X219	2
52	AMP	2035334-6	0.64x0.8F	GY	0.35	TESLA	MAT-110-206	X219	1
53	AMP	2035334-6	0.64x0.8F	VT	0.35	TESLA	MAT-110-206	X935F	22
54	unused
55	unused
56	unused
57	AMP	2035334-1	0.64x0.8F	BK	0.50	TESLA	MAT-110-206	G031	1
58	AMP	2035334-6	0.64x0.8F	YE	0.35	TESLA	MAT-110-206	X935F	11
59	AMP	2035334-6	0.64x0.8F	WH	0.35	TESLA	MAT-110-206
60	AMP	2035334-6	0.64x0.8F	BU	0.35	TESLA	MAT-110-206
