X274

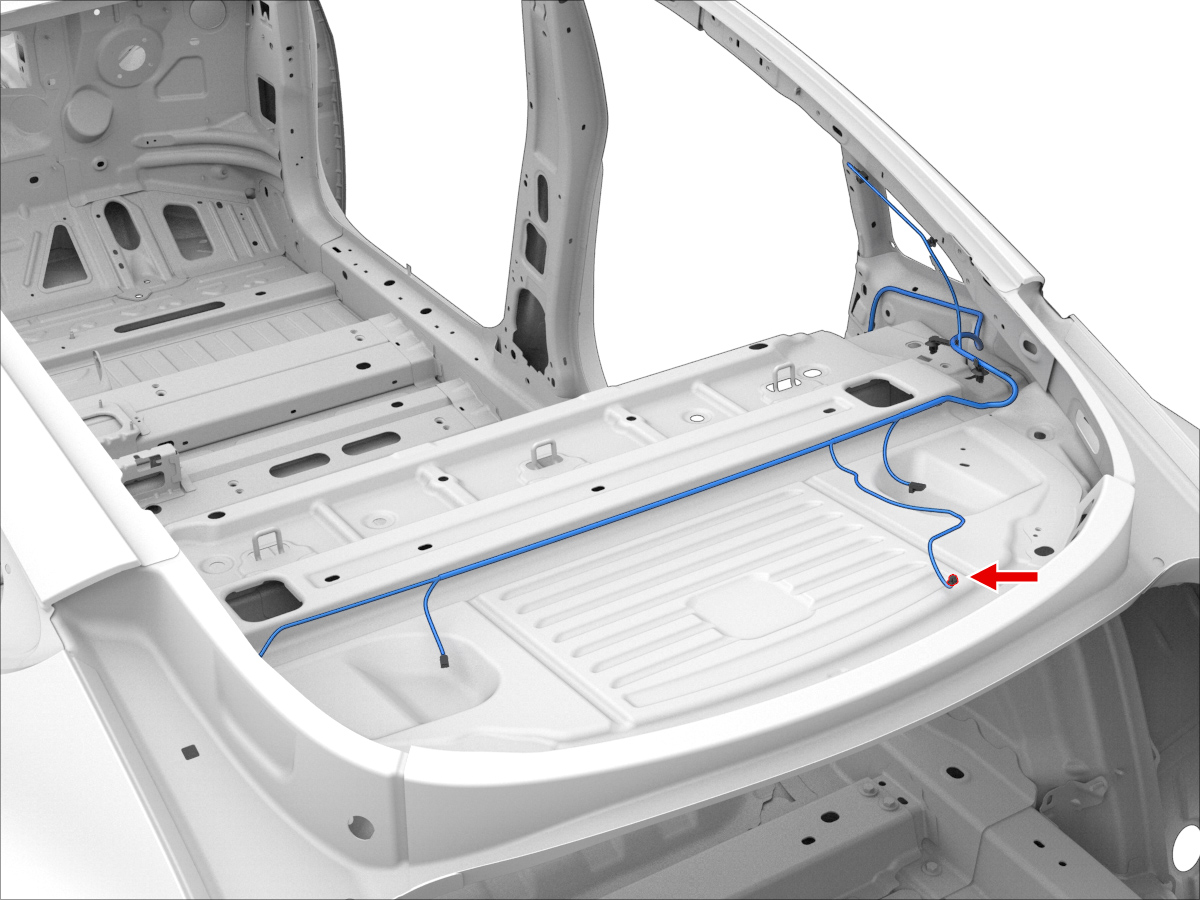

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 5051538000 | 0.5 | BK | 0.35 | X970F | 7 | ||
| 2 | MOLEX | 5051538000 | 0.5 | BU | 0.35 | X970F | 6 |
