X332

Tesla Part Number
1037270-00-A
Connector
AEES E-3550
Color
BK

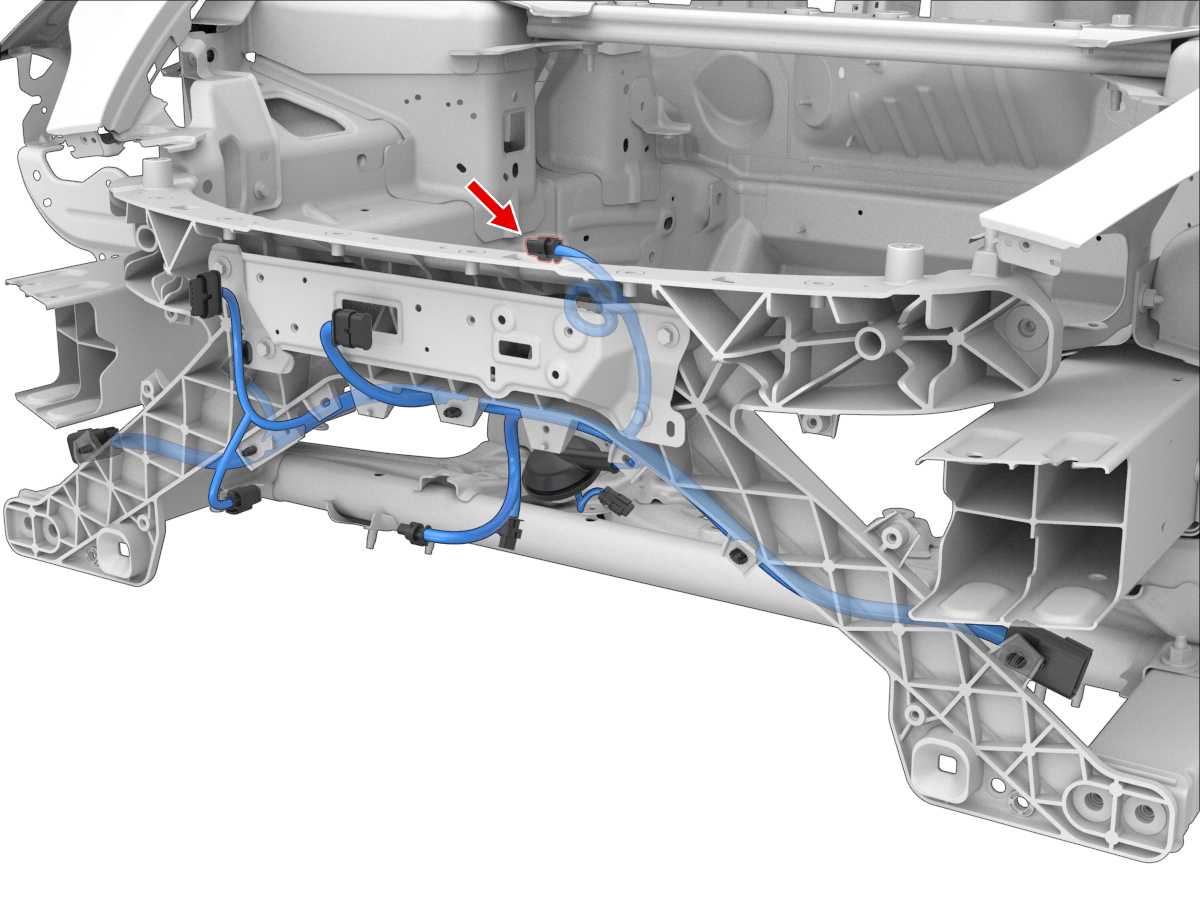

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1YAZAKI7116-4102-021.5x0.8FSYE0.35QSRE1644-06X906M14
2YAZAKI7116-4102-021.5x0.8FSBK0.35QSRE1644-06
