X365

Tesla Part Number
1079896-00-A
Connector
AMP 1-1241370-3
Color
BK

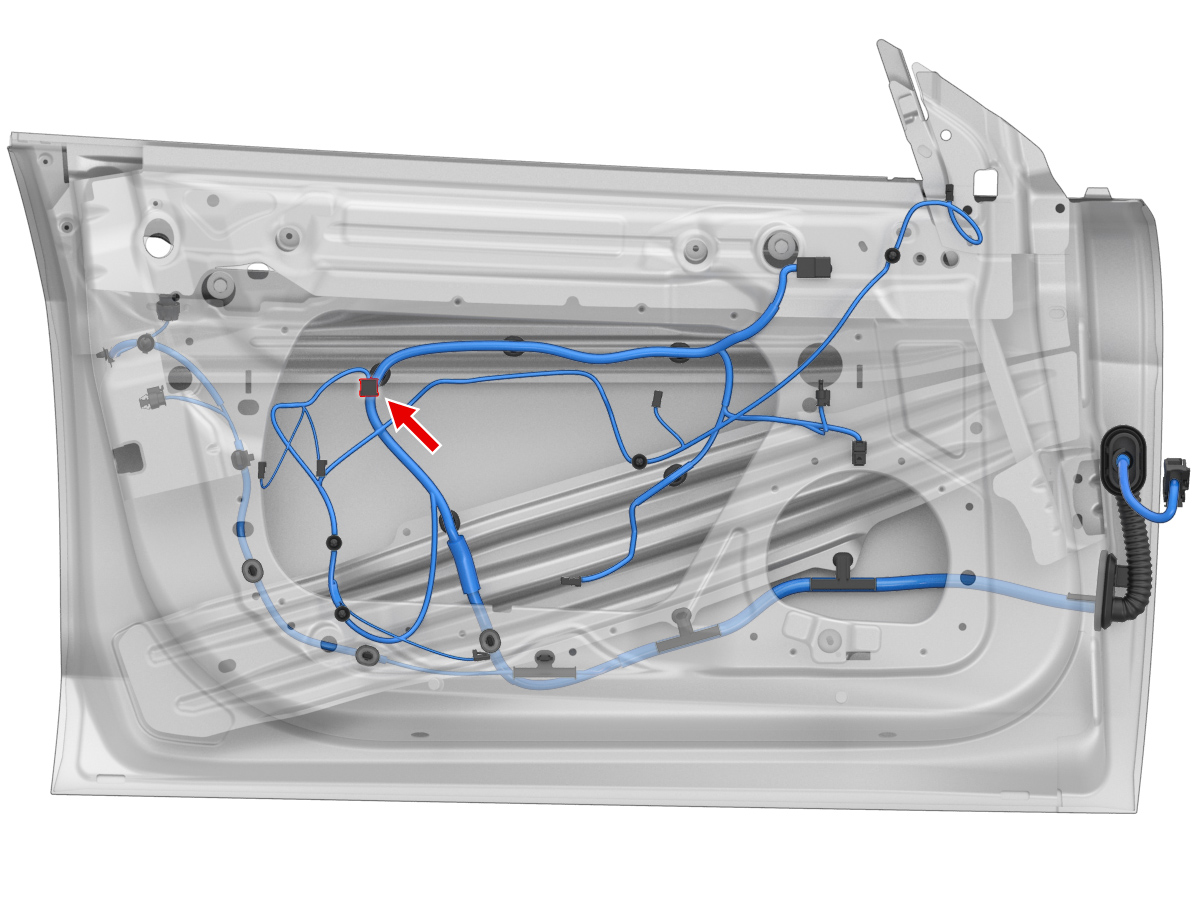

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1355717-10.63x0.63FGN0.13X03315
2AMP1355717-10.63x0.63FWH0.13X03330
3AMP1355717-10.63x0.63FBN0.13X03316
4AMP1355717-10.63x0.63FVT0.13X03331
5AMP1355717-10.63x0.63FGY0.13X0336
6AMP5-928999-10.63x0.63FBK0.35
