X373

Tesla Part Number
1046183-00-A
Connector
AMP 1379217-3
Color
BK

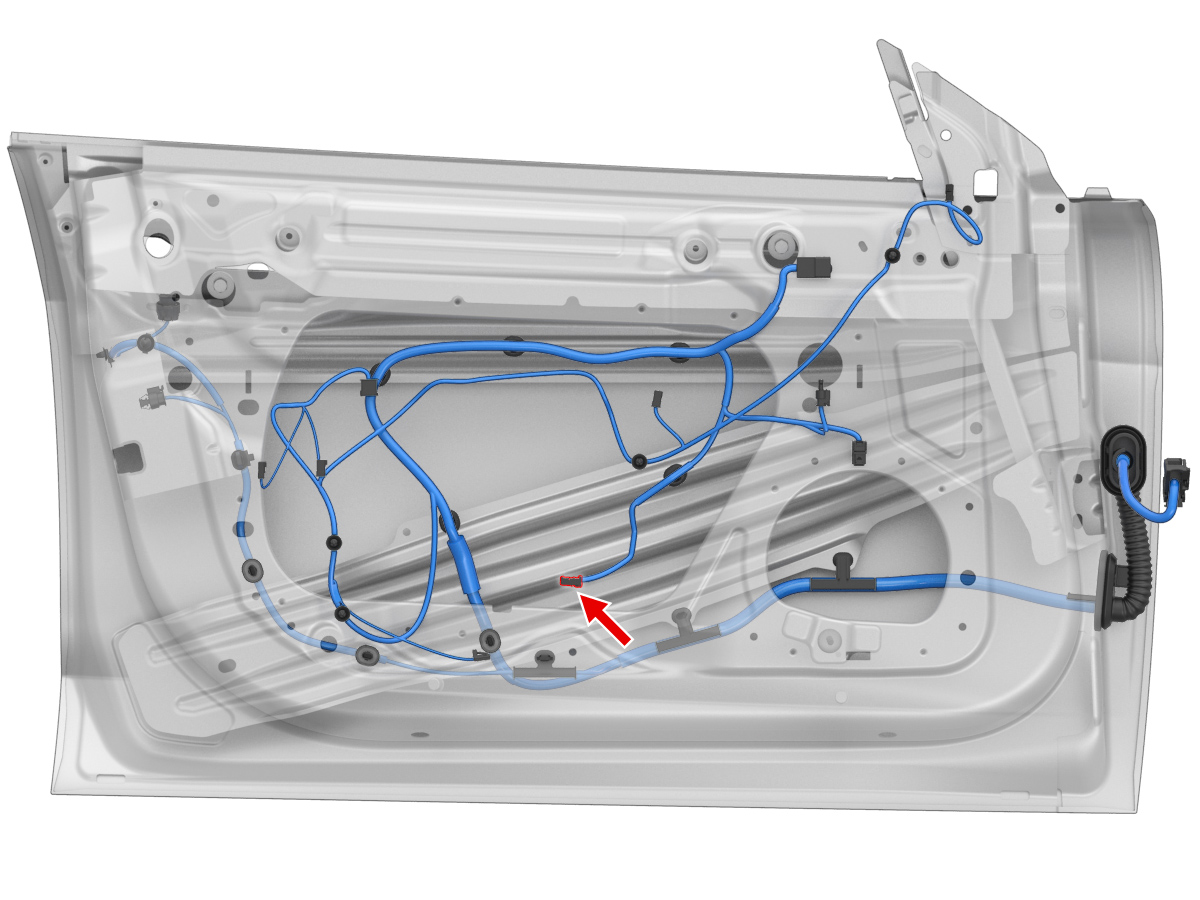

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP968075-22.8x0.6FRD1.50X03325
2AMP1355717-10.63x0.63FGN0.13X03320
3AMP1355717-10.63x0.63FBK0.13X03322
4AMP1355717-10.63x0.63FBU0.13X03321
5AMP968075-22.8x0.6FOG1.50X03326
