X425

Tesla Part Number
1047679-00-A
Connector
AMP 1-1456426-6
Color
BN

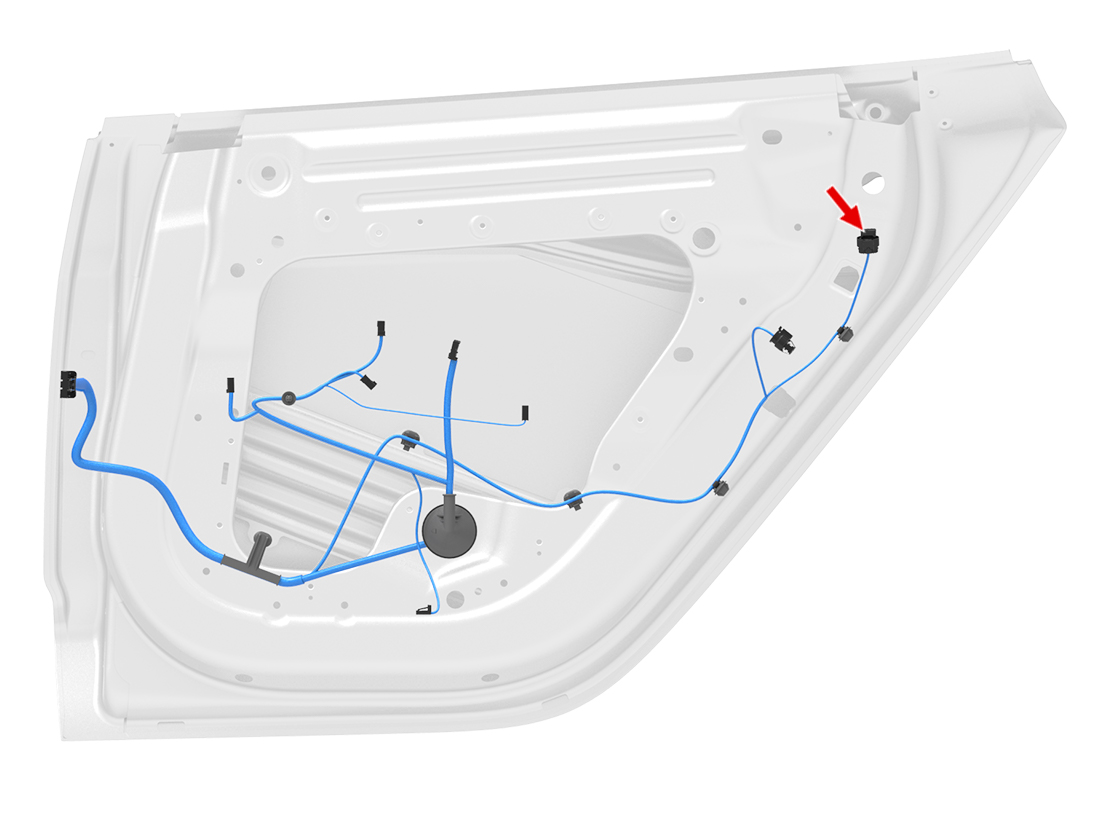

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1418844-11.2x0.6FSBU0.35
2AMP1418844-11.2x0.6FSBK0.35X924F15
3unused
4AMP1418844-11.2x0.6FSGN0.35X924F17
