X535

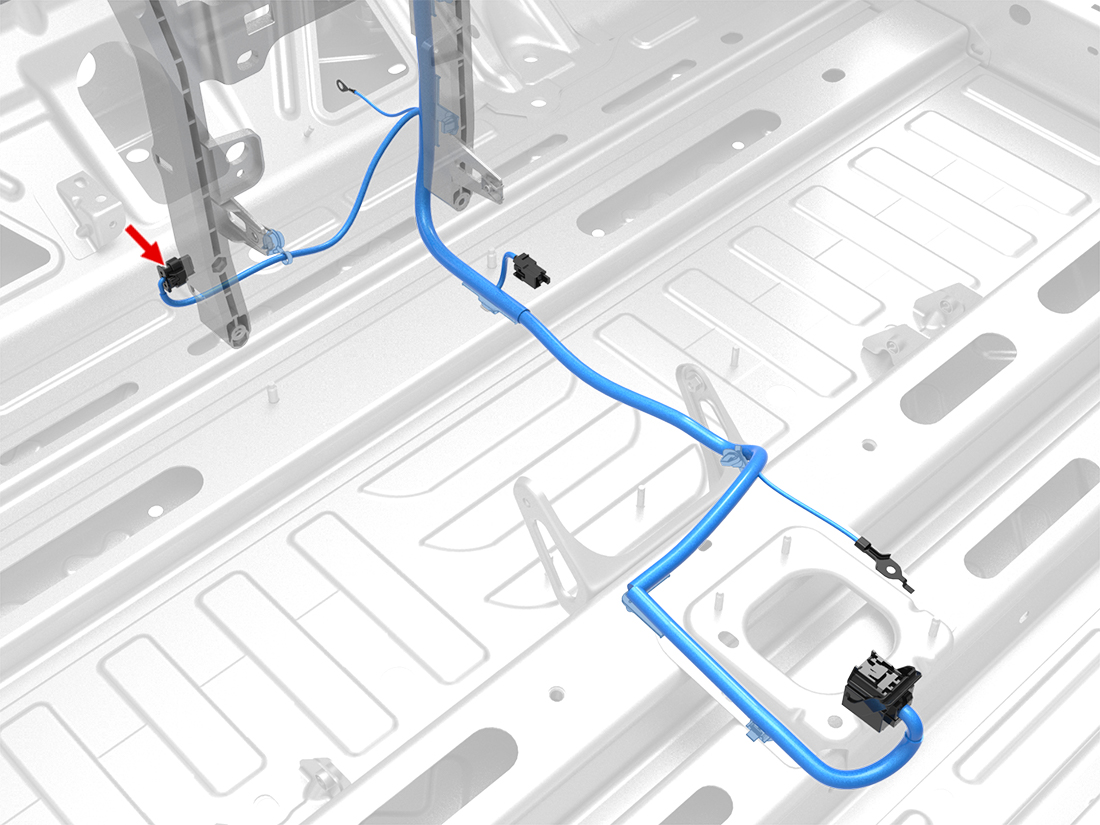

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2141970-1 | 1.2x0.6FS | WH | 0.13 | AMP | 967067-2 | X055 | 38 |
| 2 | AMP | 2141970-1 | 1.2x0.6FS | BU | 0.13 | AMP | 967067-2 | X055 | 34 |
| 3 | AMP | 2141970-1 | 1.2x0.6FS | VT | 0.13 | AMP | 967067-2 | X055 | 35 |
| 4 | AMP | 7-1452668-1 | 1.2x0.6FS | BK | 0.50 | AMP | 967067-1 |
