X560

Tesla Part Number

1042593-00-A

Connector

SUMITOMO 6098-5713

Color

WH

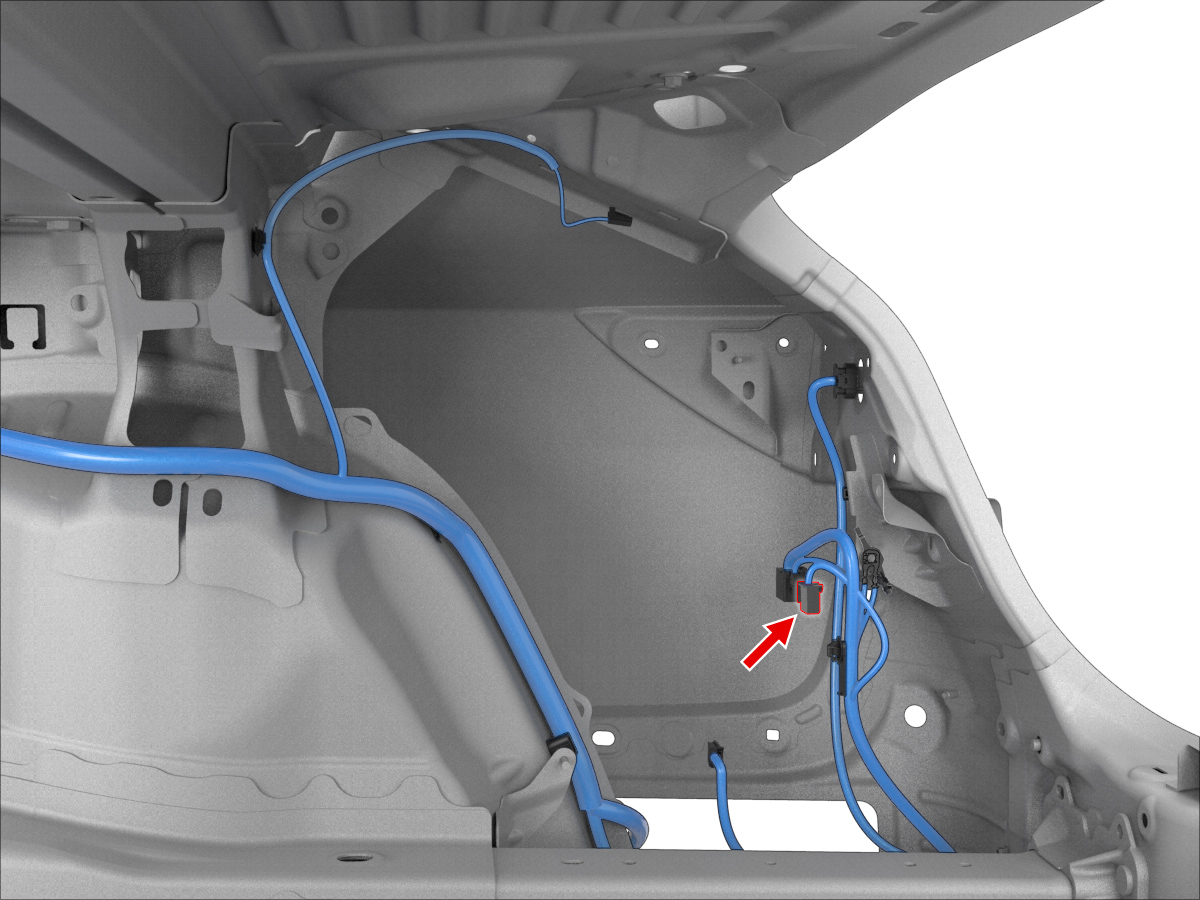

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X936M	26
2	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X936M	14
3	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X926M	18
4	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X926M	19
5	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X970M	2
6	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X970M	1
7	unused
8	unused
9	unused
10	unused
11	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X970M	4
12	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X970M	3
