X562

Tesla Part Number
1118256-00-A
Connector
AMP 2302475-2
Color
WH

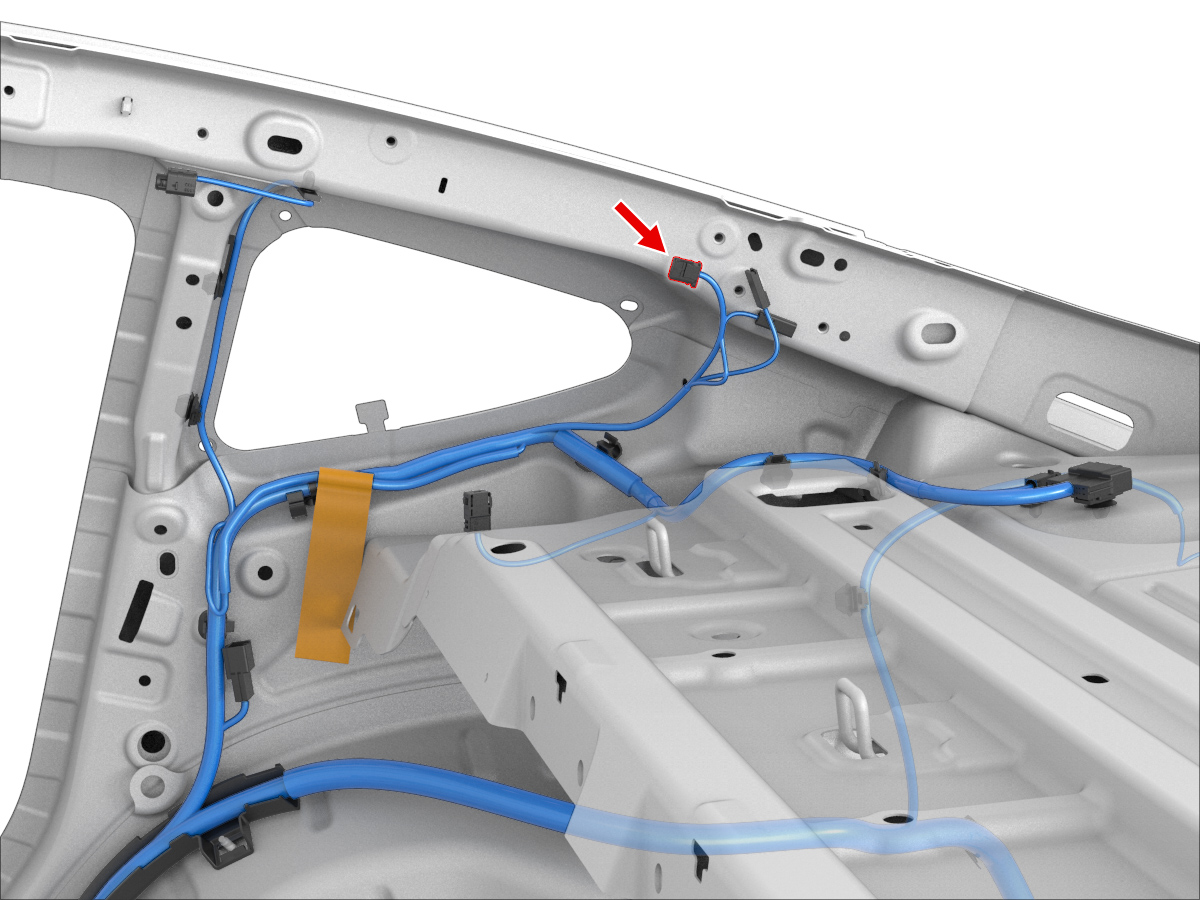

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2-1703930-10.50x0.40FRD0.35X05047
2unused
3unused
4AMP2-1703930-10.50x0.40FBK0.35G0321
5unused
6unused
7AMP1-1703930-10.50x0.40FGY0.13X908M13
8unused
9AMP1-1703930-10.50x0.40FYE0.13X908M14
10unused
