X568

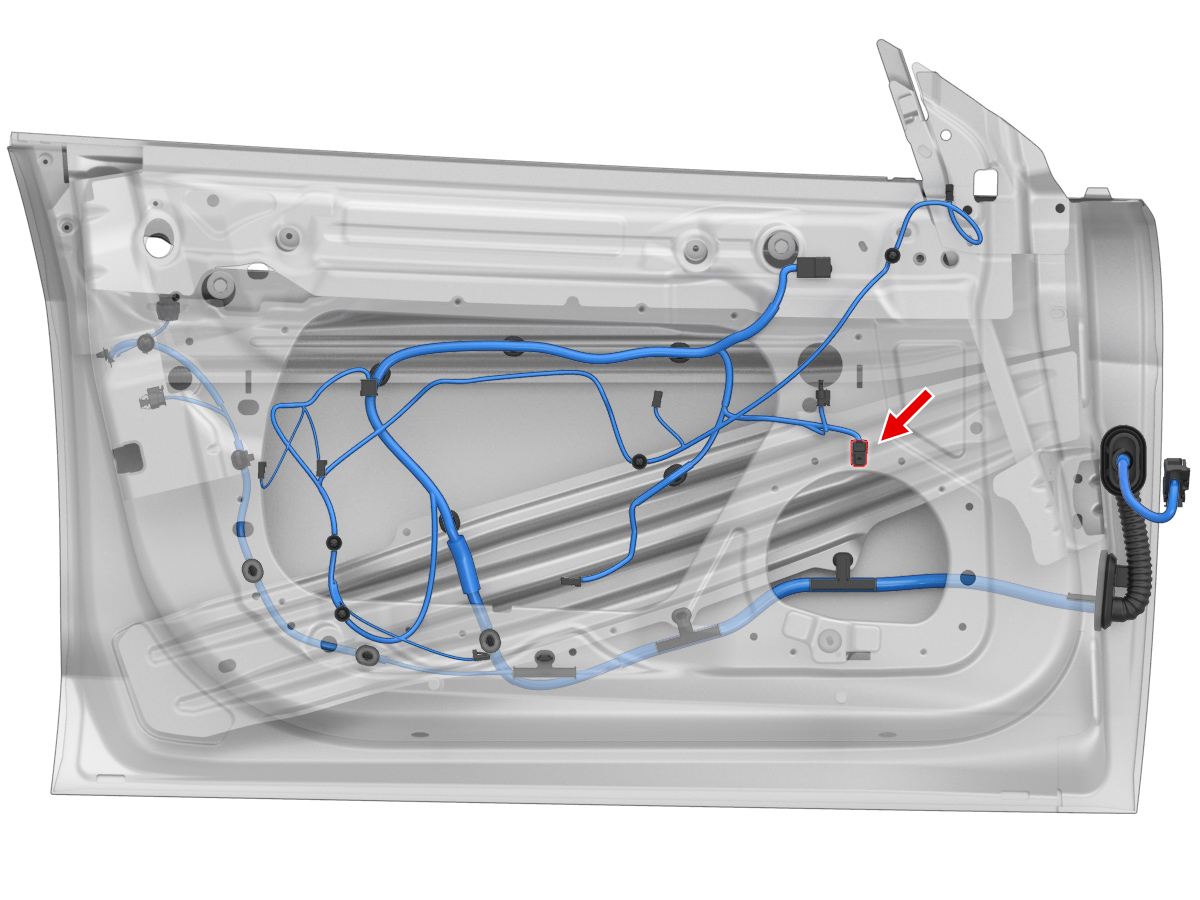

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4781-02 | 1.5x0.8F | WH | 1.00 | X033 | 7 | ||
| 2 | YAZAKI | 7116-4781-02 | 1.5x0.8F | BU | 1.00 | X033 | 8 |
