X685

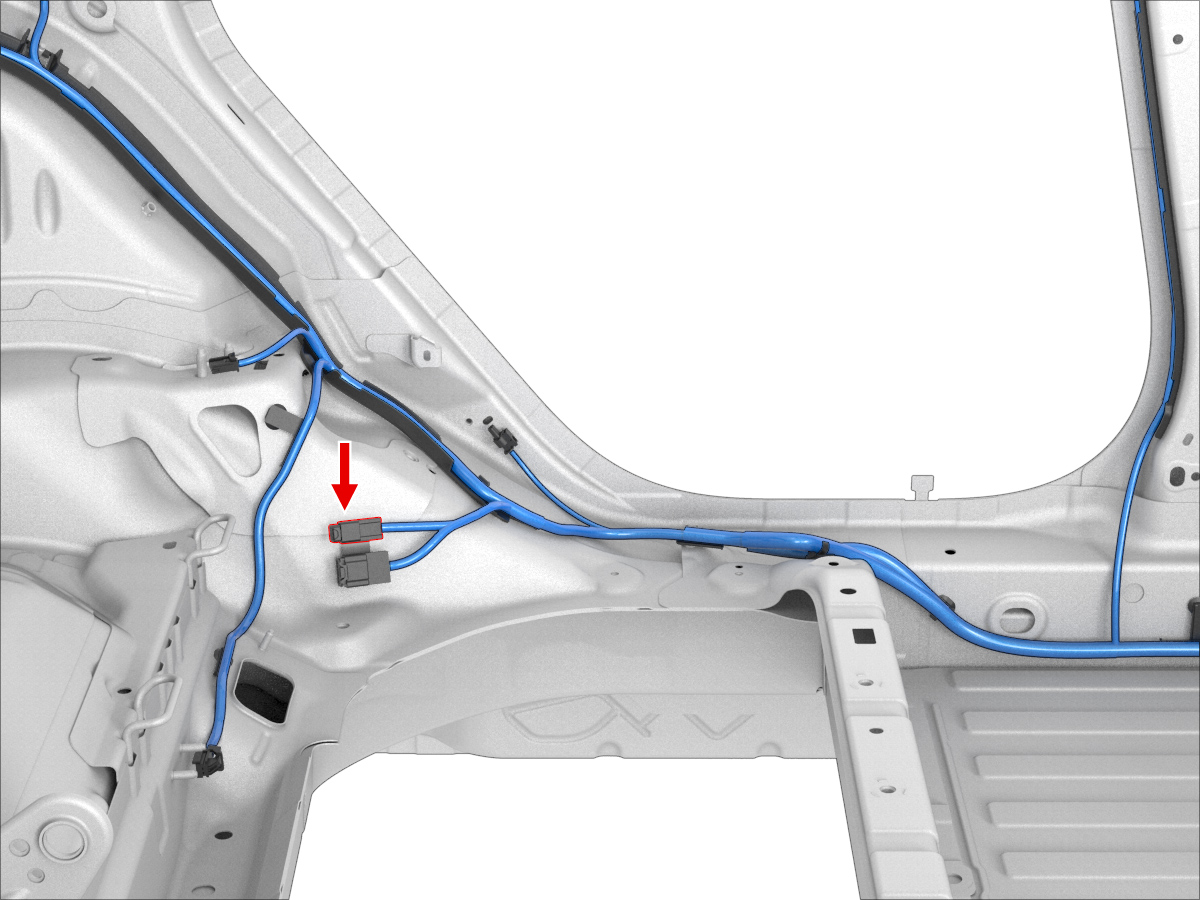

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4878 | 0.64x0.64M | VT | 0.13 | X031 | 7 | ||
| 2 | SUMITOMO | 8230-4878 | 0.64x0.64M | GN | 0.13 | X031 | 8 | ||
| 3 | SUMITOMO | 8230-4878 | 0.64x0.64M | BU | 0.13 | X031 | 9 | ||
| 4 | SUMITOMO | 8100-3623 | 0.64x0.64M | GY | 0.35 | ||||
| 5 | unused | ||||||||
