X686

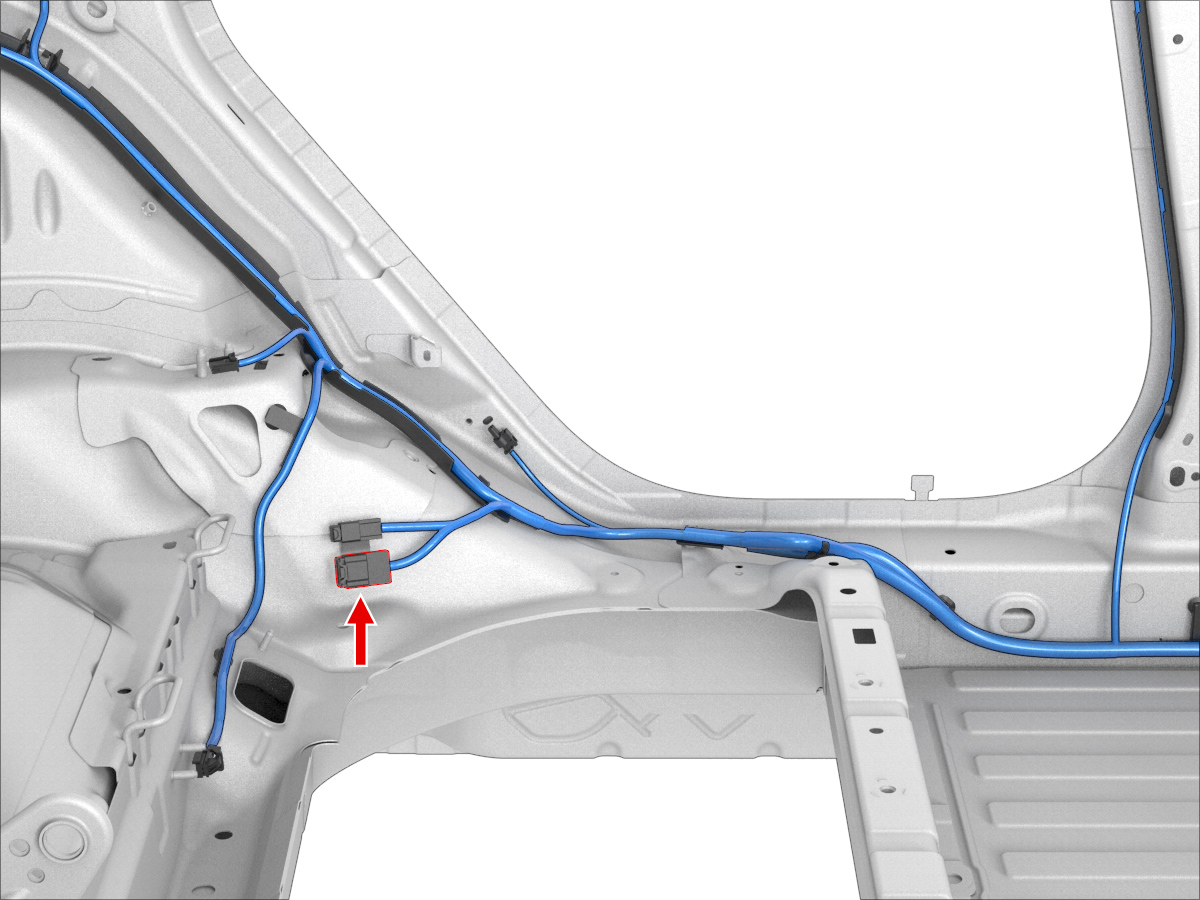

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4925 | 1.5x0.6M | YE | 0.50 | X050 | 36 | ||
| 2 | SUMITOMO | 8230-4925 | 1.5x0.6M | GN | 0.50 | X050 | 37 | ||
| 3 | SUMITOMO | 8230-4925 | 1.5x0.6M | BU | 0.50 | X050 | 13 | ||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | SUMITOMO | 8230-4925 | 1.5x0.6M | GY | 0.35 | X051 | 1 | ||
| 8 | SUMITOMO | 8230-4925 | 1.5x0.6M | VT | 0.35 | X051 | 2 | ||
| 9 | SUMITOMO | 8230-4925 | 1.5x0.6M | WH | 0.35 | X051 | 3 | ||
| 10 | SUMITOMO | 8230-4925 | 1.5x0.6M | BK | 0.35 | ||||
| 11 | unused | ||||||||
| 12 | SUMITOMO | 8230-4923 | 1.5x0.6M | BK | 1.50 | G032 | 1 | ||
