X830A

Tesla Part Number
1073368-03-A
Connector
ROSENBERGER 59Z006-T00-D
Color
BO

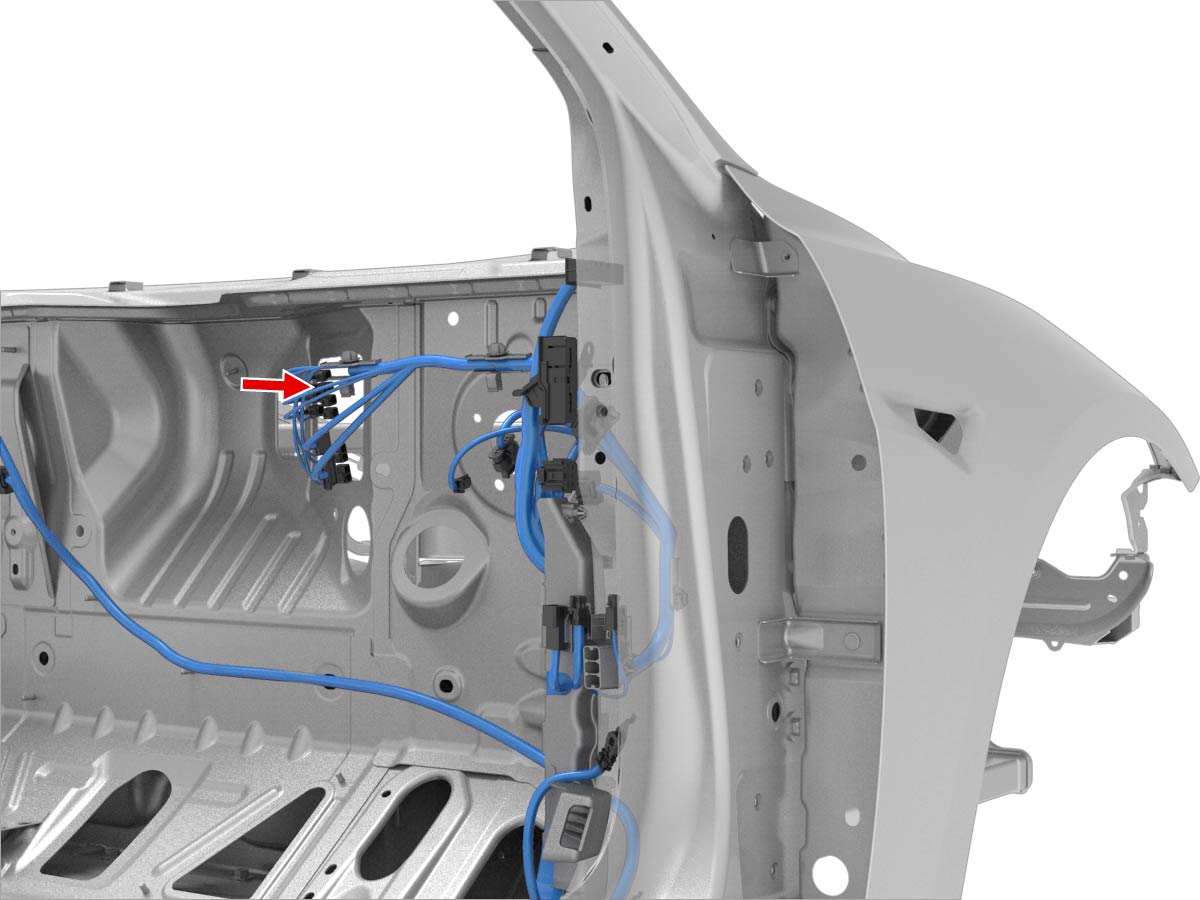

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K25H-1M4A4COAXBKD302X866M1
