X901M

Tesla Part Number

1098101-00-A

Connector

HIRSCHMANN 807-446-501

Color

BK

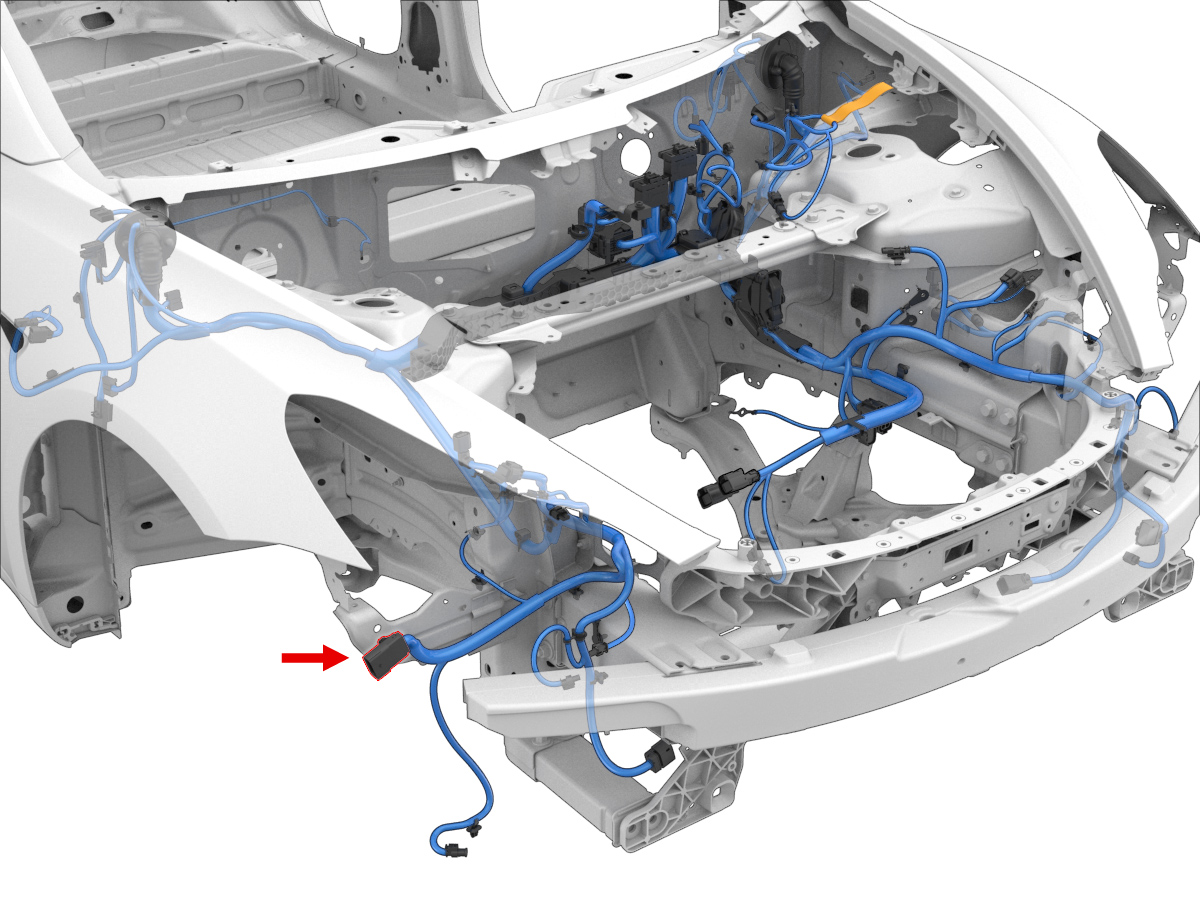

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1718762-1	1.2X0.6MS	RD	1.00	AMP	967067-1	X010	29
2	AMP	2141868-1	1.2x0.6MS	BN	0.13	AMP	967067-2	X057	15
3	AMP	2141868-1	1.2x0.6MS	BU	0.13	AMP	967067-2	X057	16
4	AMP	2141868-1	1.2x0.6MS	GN	0.13	AMP	967067-2	X057	17
5	AMP	2141868-1	1.2x0.6MS	WH	0.13	AMP	967067-2	X057	18
6	AMP	2141868-1	1.2x0.6MS	GY	0.13	AMP	967067-2	X057	19
7	AMP	2141868-1	1.2x0.6MS	VT	0.13	AMP	967067-2	X057	20
8	AMP	1718760-1	1.2X0.6MS	RD	0.50	AMP	967067-1	X013	2
9	AMP	1718760-1	1.2X0.6MS	BK	0.50	AMP	967067-1	X013	27
10	AMP	1718758-1	1.2X0.6MS	RD	0.35	AMP	967067-2	X057	21
11	AMP	1718758-1	1.2X0.6MS	VT	0.35	AMP	967067-2	X013	23
12	AMP	1718758-1	1.2X0.6MS	BU	0.35	AMP	967067-2	X013	19
13	AMP	1718758-1	1.2X0.6MS	VT	0.35	AMP	967067-2	X013	9
14	AMP	1718758-1	1.2X0.6MS	OG	0.35	AMP	967067-2	X013	10
15	AMP	1718758-1	1.2X0.6MS	YE	0.35	AMP	967067-2	X057	22
16	AMP	1718762-1	1.2X0.6MS	BK	1.00	AMP	967067-1	G012	4
