X905F

Tesla Part Number

1098098-00-A

Connector

HIRSCHMANN 807-445-511

Color

BK

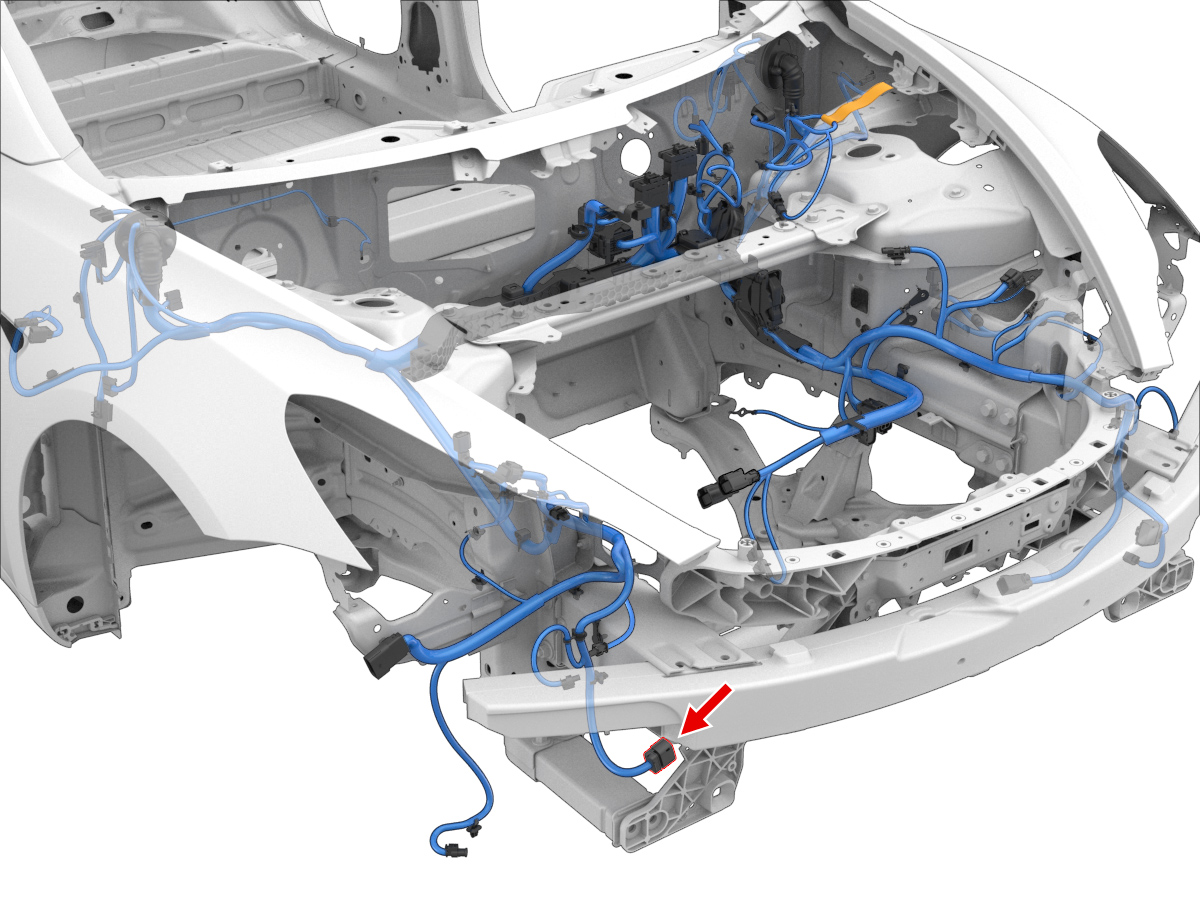

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	AMP	7-1452665-1	1.2x0.6FS	OG	0.35	AMP	967067-2	X010	15
3	unused
4	unused
5	unused
6	unused
7	AMP	2141970-1	1.2x0.6FS	GN	0.13	AMP	967067-2	X010	19
8	AMP	2141970-1	1.2x0.6FS	WH	0.13	AMP	967067-2	X010	18
9	AMP	7-1452671-1	1.2x0.6FS	BK	1.00	AMP	967067-1	G012	6
10	AMP	2141970-1	1.2x0.6FS	WH	0.13	AMP	967067-2	X121	3
11	AMP	2141970-1	1.2x0.6FS	YE	0.13	AMP	967067-2	X121	8
12	AMP	7-1452665-1	1.2x0.6FS	OG	0.35	AMP	967067-2	X909F	7
13	AMP	7-1452665-1	1.2x0.6FS	YE	0.35	AMP	967067-2	X909F	8
14	unused
15	unused
16	unused
