X905M

Tesla Part Number

1098101-00-A

Connector

HIRSCHMANN 807-446-501

Color

BK

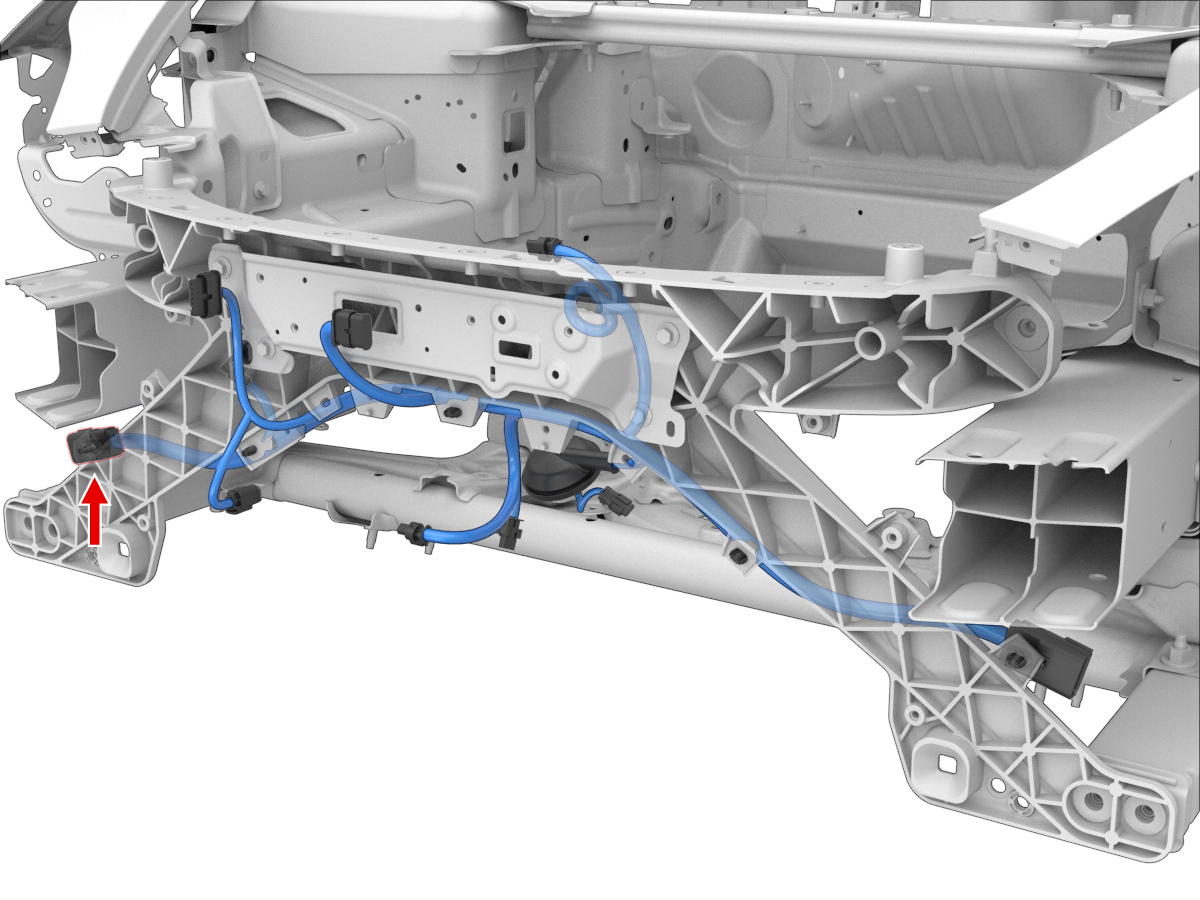

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	AMP	1718758-1	1.2X0.6MS	OG	0.35	AMP	967067-2	X104	4
3	unused
4	unused
5	unused
6	AMP	1718758-1	1.2X0.6MS	BK	0.35	AMP	967067-2	X485	2
7	AMP	2141868-1	1.2x0.6MS	GN	0.13	AMP	967067-2	X485	3
8	AMP	2141868-1	1.2x0.6MS	WH	0.13	AMP	967067-2	X485	1
9	AMP	1718762-1	1.2X0.6MS	BK	1.00	AMP	967067-1
10	AMP	2141868-1	1.2x0.6MS	WH	0.13	AMP	967067-2	X104	5
11	AMP	2141868-1	1.2x0.6MS	YE	0.13	AMP	967067-2	X104	6
12	AMP	1718758-1	1.2X0.6MS	OG	0.35	AMP	967067-2	X210	1
13	AMP	1718758-1	1.2X0.6MS	YE	0.35	AMP	967067-2	X210	2
14	AMP	1718760-1	1.2X0.6MS	BU	0.50	AMP	967067-1	X199	1
15	AMP	1718760-1	1.2X0.6MS	RD	0.50	AMP	967067-1	X198	1
16	unused
