X906F

Tesla Part Number

1098099-00-A

Connector

HIRSCHMANN 807-445-512

Color

GY

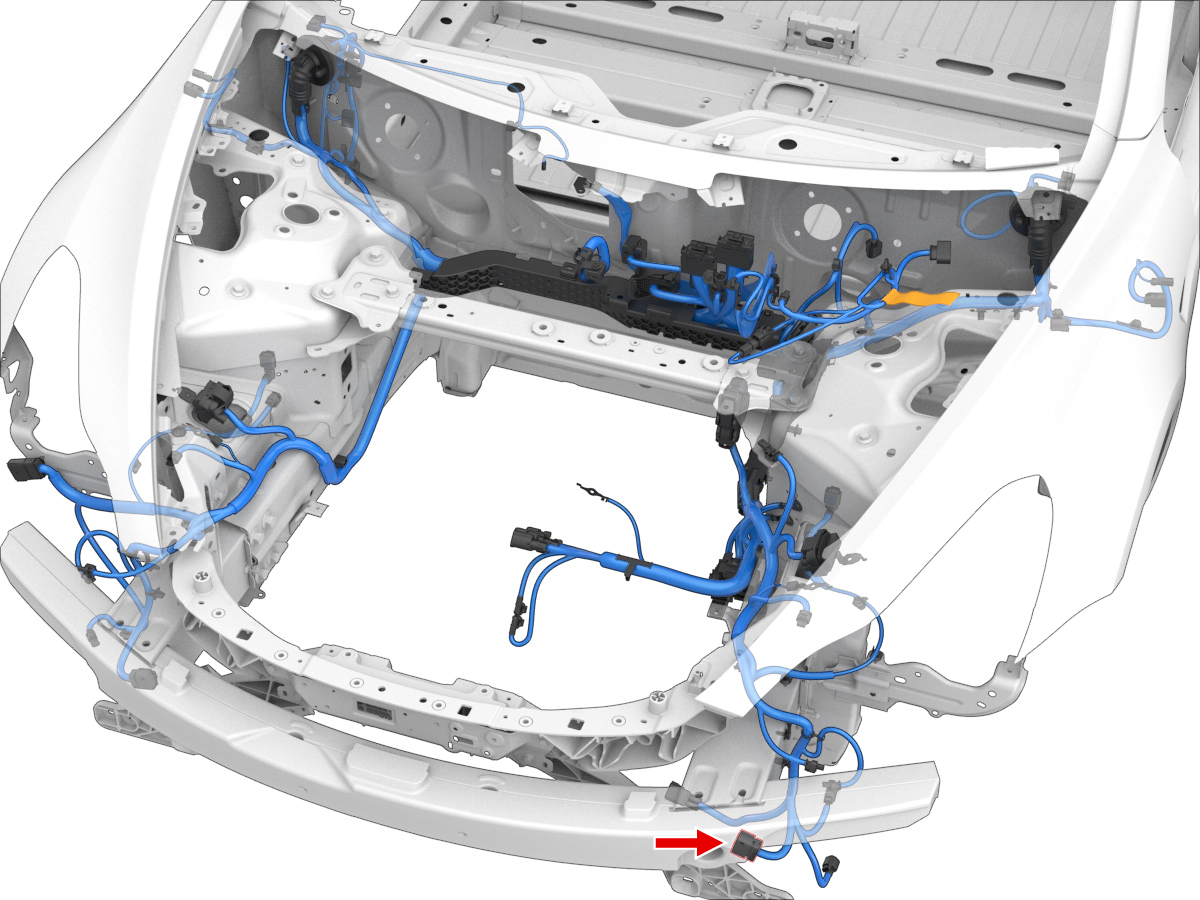

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	7-1452665-1	1.2x0.6FS	YE	0.35	AMP	967067-2	X013	35
2	AMP	7-1452665-1	1.2x0.6FS	RD	0.35	AMP	967067-2	X013	36
3	AMP	7-1452665-1	1.2x0.6FS	VT	0.35	AMP	967067-2	X013	34
4	AMP	7-1452665-1	1.2x0.6FS	GY	0.35	AMP	967067-2
5	AMP	2141970-1	1.2x0.6FS	RD	0.13	AMP	967067-2	X121	6
6	AMP	2141970-1	1.2x0.6FS	BU	0.13	AMP	967067-2	X121	7
7	AMP	7-1452665-1	1.2x0.6FS	GY	0.35	AMP	967067-2	X010	16
8	unused
9	AMP	2141970-1	1.2x0.6FS	GN	0.13	AMP	967067-2	X037	12
10	AMP	7-1452665-1	1.2x0.6FS	WH	0.35	AMP	967067-2	X010	51
11	AMP	7-1452665-1	1.2x0.6FS	BK	0.35	AMP	967067-2	X010	50
12	AMP	7-1452665-1	1.2x0.6FS	BU	0.35	AMP	967067-2	X010	26
13	AMP	7-1452665-1	1.2x0.6FS	GN	0.35	AMP	967067-2	X010	47
14	AMP	7-1452665-1	1.2x0.6FS	YE	0.35	AMP	967067-2	X010	3
15	AMP	7-1452665-1	1.2x0.6FS	VT	0.35	AMP	967067-2	X010	17
16	AMP	7-1452665-1	1.2x0.6FS	BU	0.35	AMP	967067-2	X010	1
