X906M

Tesla Part Number

1098102-00-A

Connector

HIRSCHMANN 807-446-502

Color

GY

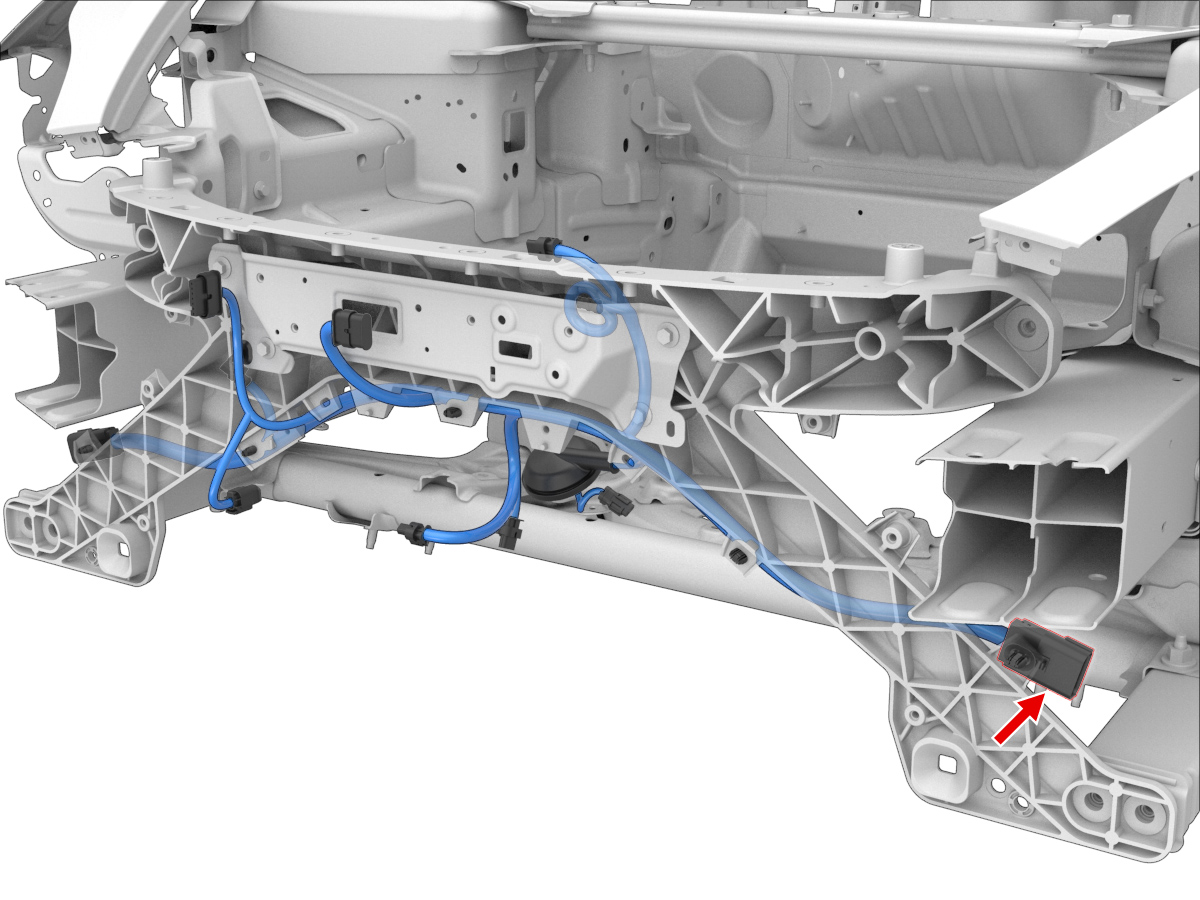

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1718758-1	1.2X0.6MS	YE	0.35	AMP	967067-2	X506	3
2	AMP	1718758-1	1.2X0.6MS	RD	0.35	AMP	967067-2	X506	4
3	AMP	1718758-1	1.2X0.6MS	VT	0.35	AMP	967067-2	X506	2
4	AMP	1718758-1	1.2X0.6MS	GY	0.35	AMP	967067-2
5	AMP	2141868-1	1.2x0.6MS	RD	0.13	AMP	967067-2	X104	3
6	AMP	2141868-1	1.2x0.6MS	BU	0.13	AMP	967067-2	X104	2
7	AMP	1718758-1	1.2X0.6MS	GY	0.35	AMP	967067-2	X333	3
8	unused
9	AMP	1718758-1	1.2X0.6MS	GN	0.35	AMP	967067-2	X487	2
10	AMP	1718758-1	1.2X0.6MS	WH	0.35	AMP	967067-2	X330	1
11	AMP	1718758-1	1.2X0.6MS	BK	0.35	AMP	967067-2	X330	2
12	AMP	1718758-1	1.2X0.6MS	BU	0.35	AMP	967067-2	X331	1
13	AMP	1718758-1	1.2X0.6MS	GN	0.35	AMP	967067-2	X331	2
14	AMP	1718758-1	1.2X0.6MS	YE	0.35	AMP	967067-2	X332	1
15	AMP	1718758-1	1.2X0.6MS	VT	0.35	AMP	967067-2	X333	1
16	AMP	1718758-1	1.2X0.6MS	BU	0.35	AMP	967067-2	X487	3
