X908M

Tesla Part Number

1042620-01-A

Connector

SUMITOMO 6098-5616

Color

BK

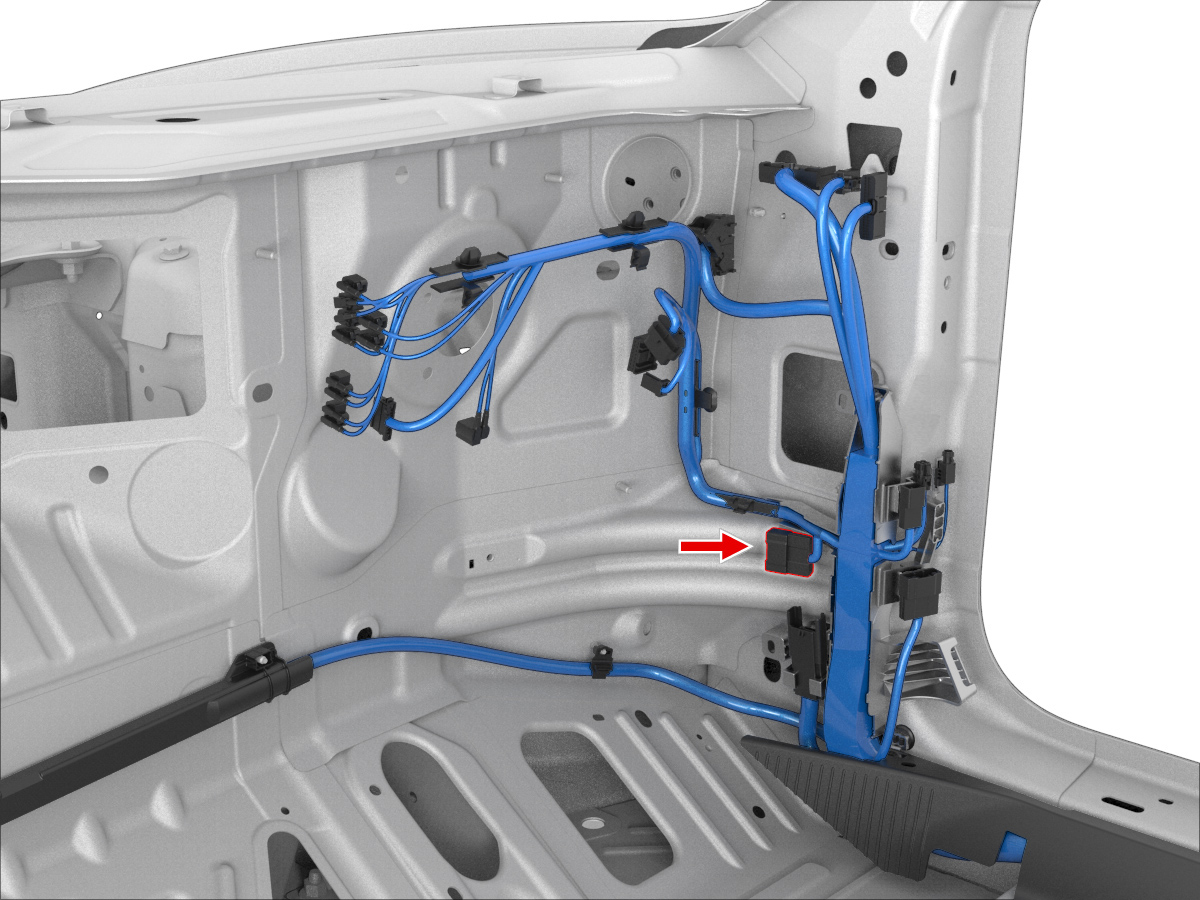

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X173	2
2	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X173	1
3	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X952M	4
4	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X952M	5
5	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X171	11
6	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X171	12
7	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X952M	11
8	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X952M	12
9	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X952M	13
10	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X050	40
11	SUMITOMO	8230-4925	1.5x0.6M	YE	0.35			X173	8
12	SUMITOMO	8230-4924	1.5x0.6M	OG	1.00			X098	18
13	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13			X562	7
14	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13			X562	9
15	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X051	13
16	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X952M	2
17	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X952M	3
18	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X952M	9
19	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X098	3
20	unused
