X909F

Tesla Part Number

1097116-00-A

Connector

DELPHI 33245684

Color

WH

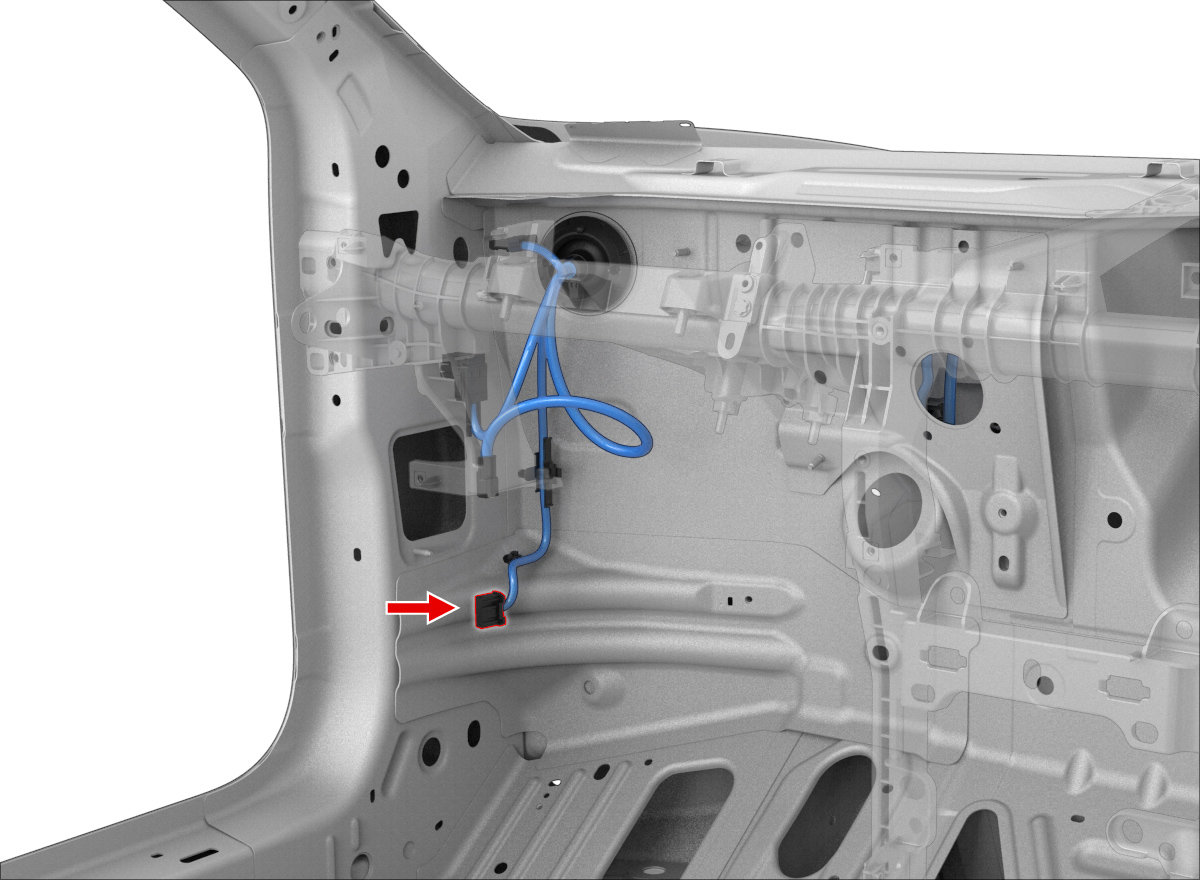

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X603A	1
2	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X603A	2
3	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13
4	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13
5	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X172	3
6	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X172	4
7	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X905F	12
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X905F	13
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X057	25
10	unused
11	unused
12	unused
13	unused
14	unused
15	unused
16	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13
17	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13
18	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X202	1
19	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X202	2
20	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X203	1
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X203	2
22	unused
