X909M

Tesla Part Number

1097117-00-A

Connector

DELPHI 33245685

Color

WH

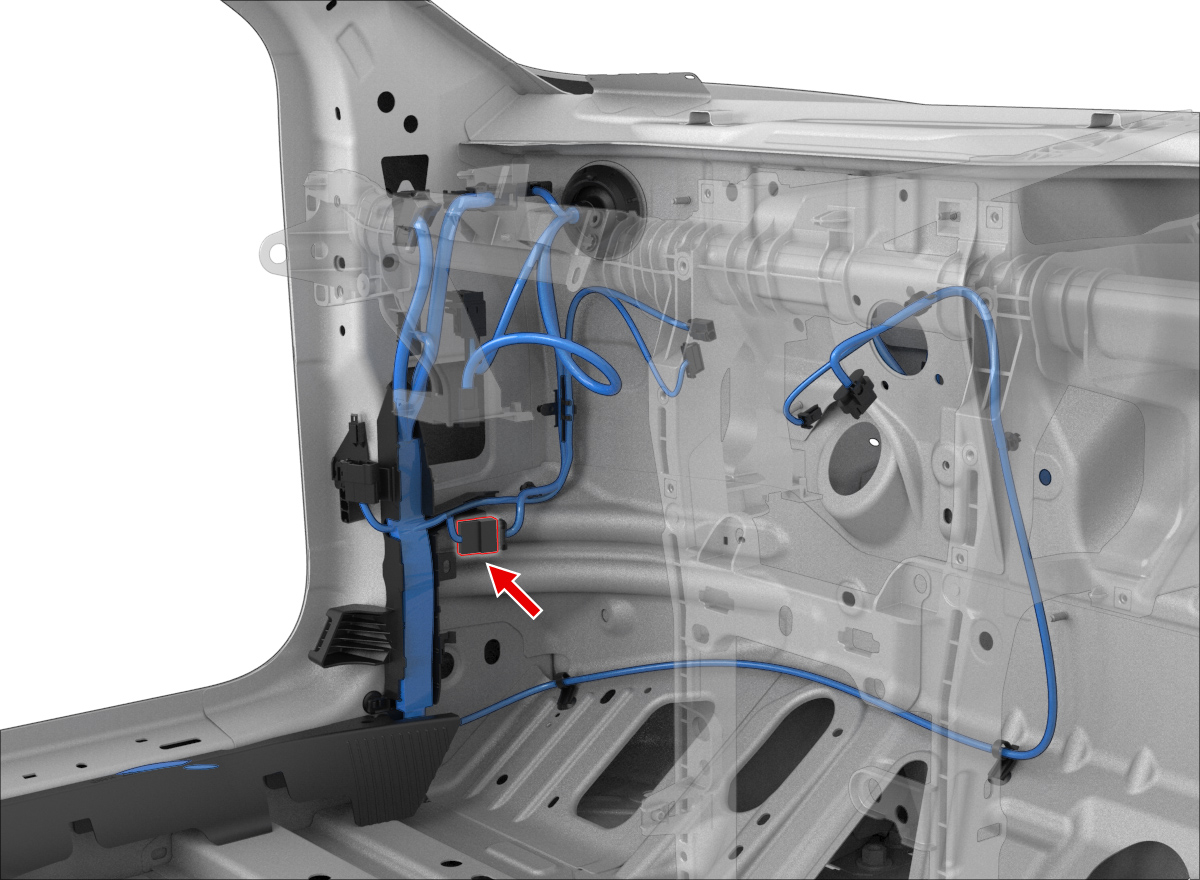

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X173A	2
2	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X173A	1
3	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13			X930F	18
4	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X930F	19
5	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X981M	9
6	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X981M	10
7	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X201	19
8	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	20
9	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X173A	8
10	unused
11	unused
12	unused
13	unused
14	unused
15	unused
16	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13
17	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13
18	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X201	29
19	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X201	30
20	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X201	28
21	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X201	27
22	unused
