X915M

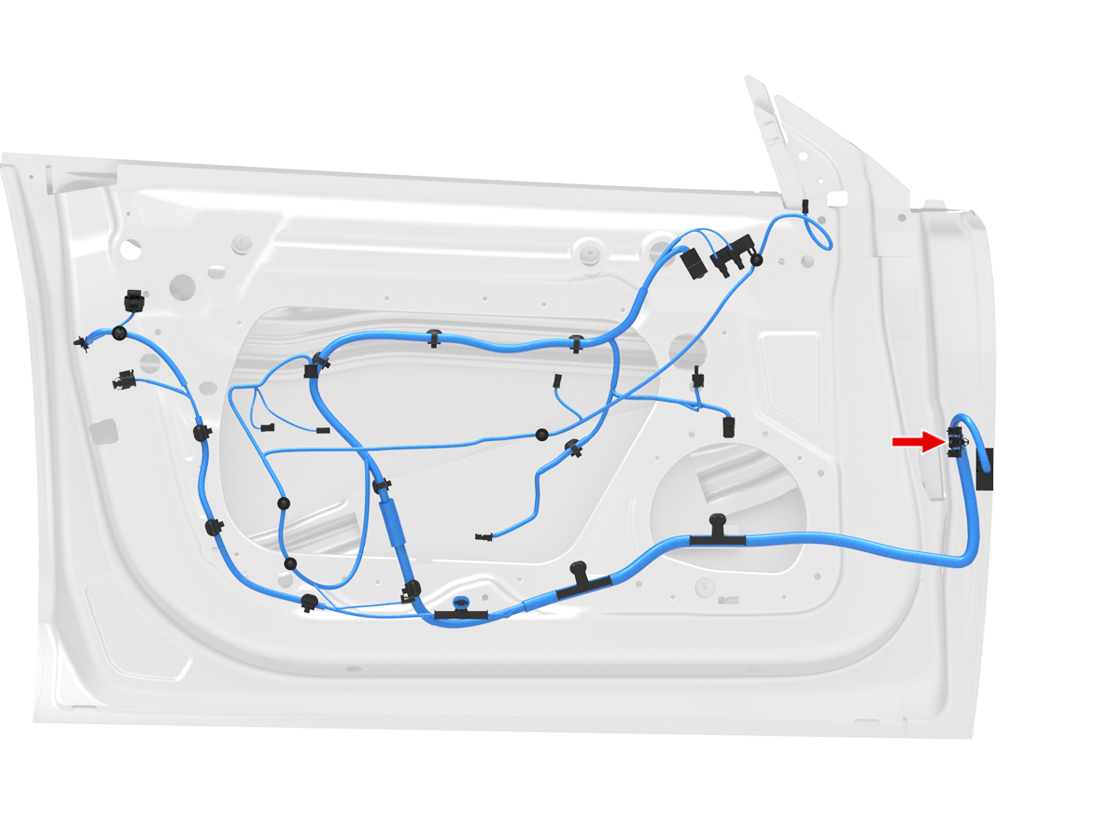

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4924 | 1.5x0.6M | BK | 0.75 | X565 | 1 | ||
| 2 | SUMITOMO | 8230-4924 | 1.5x0.6M | VT | 0.75 | X565 | 2 |
