X924M

Tesla Part Number

1042620-00-A

Connector

SUMITOMO 6098-5613

Color

WH

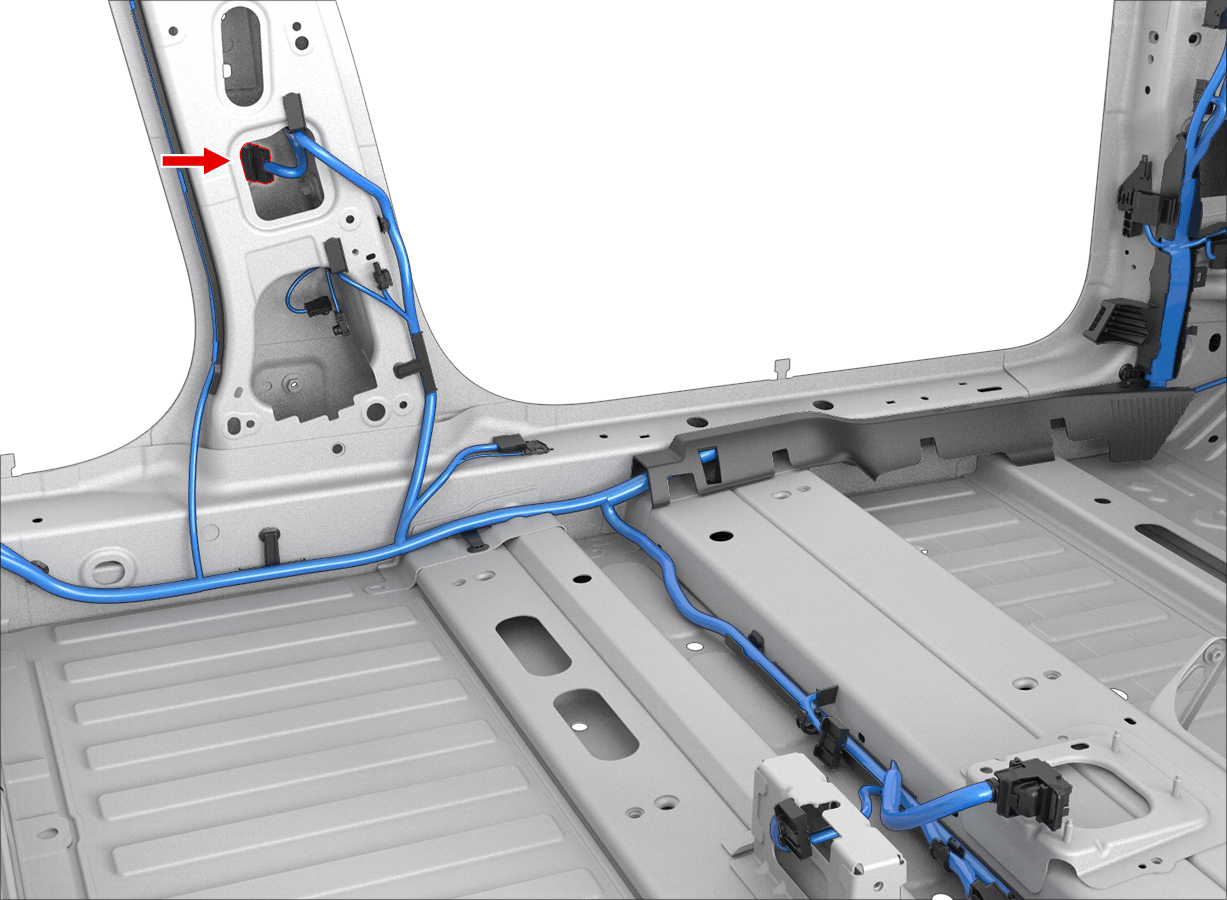

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	WH	1.50			X030	48
2	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X031	37
3	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X031	14
4	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50			X030	1
5	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13			X030	22
6	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13			X030	21
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X031	40
8	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X031	17
9	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X030	30
10	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X030	29
11	SUMITOMO	8230-4925	1.5x0.6M	BU	0.50			X936F	14
12	SUMITOMO	8230-4923	1.5x0.6M	GY	1.50			X030	49
13	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13			X031	15
14	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X031	38
15	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X031	16
16	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X030	20
17	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X031	39
18	unused
19	unused
20	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X936F	26
