X930F

Tesla Part Number

1048099-03-A

Connector

YAZAKI 7287-1918-90

Color

BU

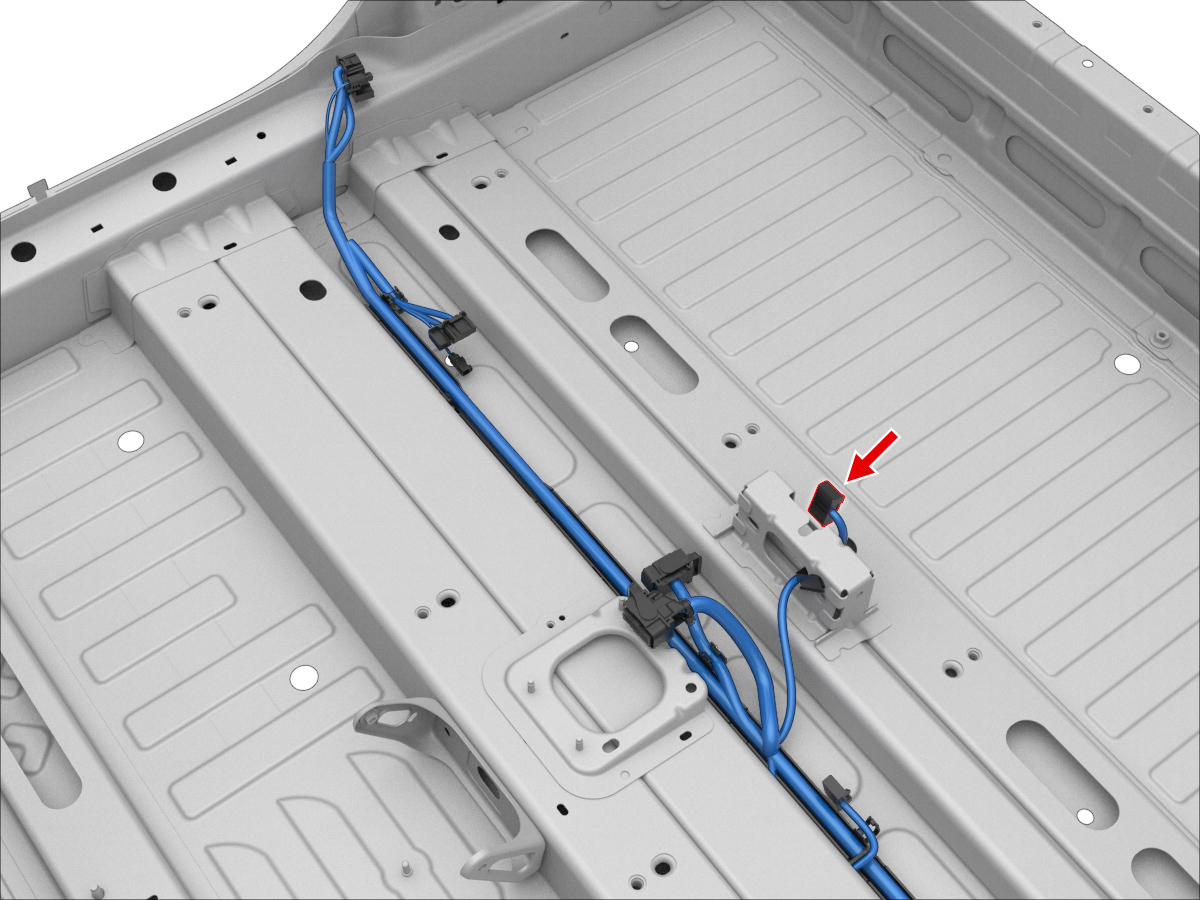

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X030	50
2	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X031	24
3	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X031	5
4	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X030	35
5	unused
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			G031	1
8	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X031	25
9	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X936F	7
10	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X936F	20
11	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X031	6
12	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X493	3
13	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X493	4
14	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			G031	1
15	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00
16	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X497	2
17	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X497	1
18	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X909M	3
19	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X909M	4
20	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X937M	9
21	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X937M	10
22	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X937M	7
23	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X937M	8
24	unused
25	unused
26	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			X030	13
