X935M

Tesla Part Number

1097117-00-A

Connector

DELPHI 33245685

Color

WH

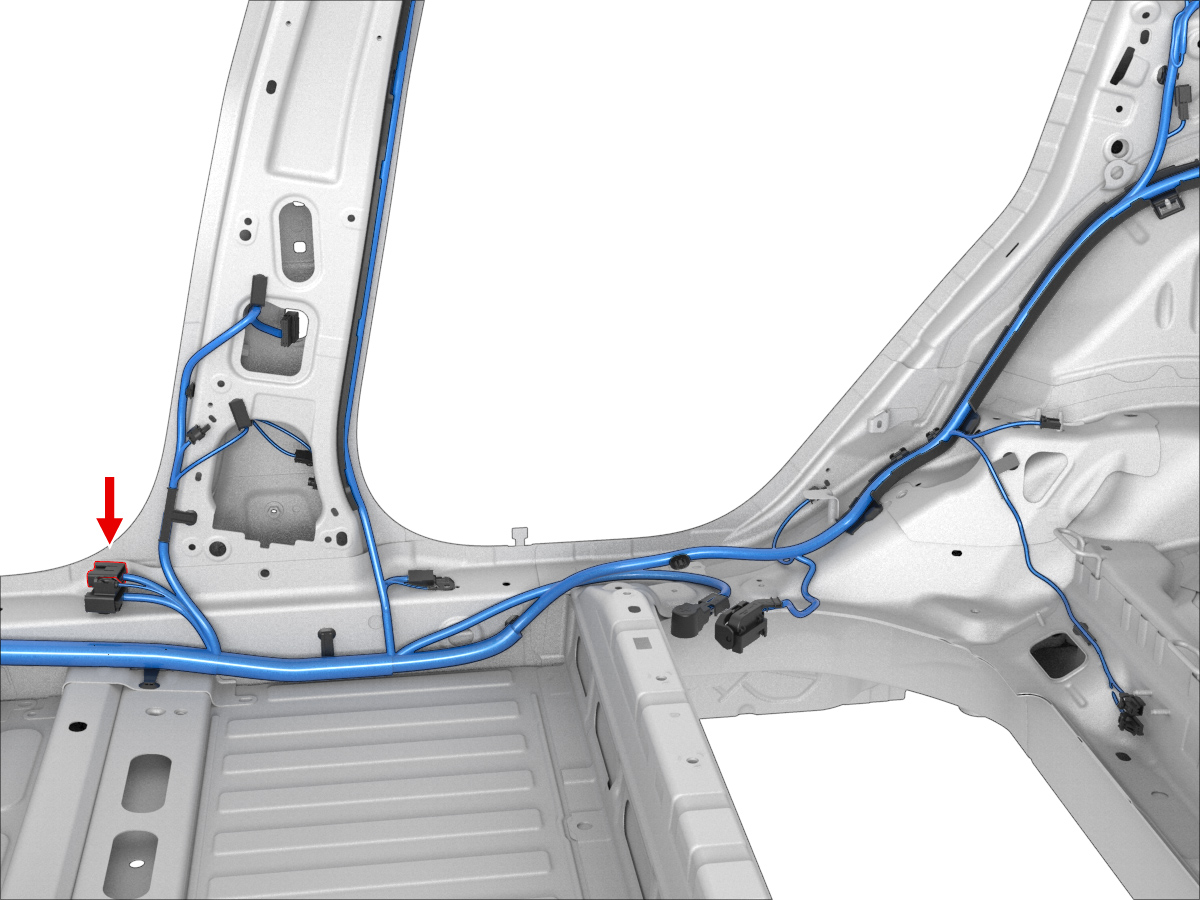

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13			X098	7
2	SUMITOMO	8230-4878	0.64x0.64M	BK	0.13			X098	6
3	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X207	1
4	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X207	2
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X209	1
6	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X209	2
7	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X050	15
8	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X050	14
9	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13			X051	24
10	SUMITOMO	8230-4878	0.64x0.64M	BN	0.13			X051	23
11	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X213	1
12	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X218	1
13	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X218	2
14	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X222	1
15	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X222	2
16	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X050	2
17	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X050	1
18	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X220	1
19	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X220	2
20	unused
21	unused
22	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X213	2
