X937M

Tesla Part Number

1098101-00-A

Connector

HIRSCHMANN 807-446-501

Color

BK

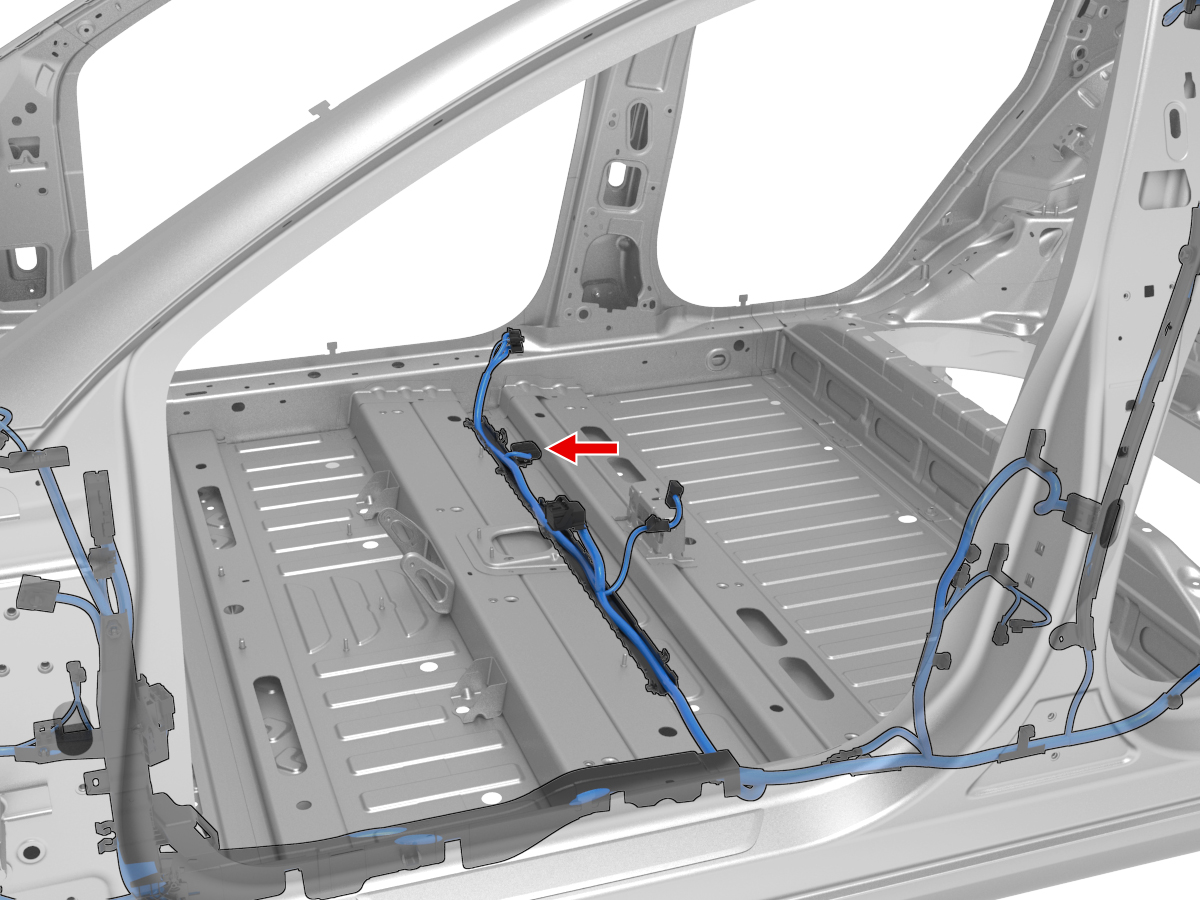

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1718758-1	1.2X0.6MS	YE	0.35	AMP	967067-2	X981M	13
2	AMP	1718758-1	1.2X0.6MS	BU	0.35	AMP	967067-2	X981M	14
3	AMP	1718758-1	1.2X0.6MS	WH	0.35	AMP	967067-2	X981M	17
4	AMP	1718758-1	1.2X0.6MS	GN	0.35	AMP	967067-2	X981M	12
5	AMP	1718758-1	1.2X0.6MS	VT	0.35	AMP	967067-2	X981M	15
6	unused
7	AMP	1718758-1	1.2X0.6MS	GN	0.35	AMP	967067-2	X930F	22
8	AMP	1718758-1	1.2X0.6MS	YE	0.35	AMP	967067-2	X930F	23
9	AMP	1718758-1	1.2X0.6MS	RD	0.35	AMP	967067-2	X930F	20
10	AMP	1718758-1	1.2X0.6MS	BK	0.35	AMP	967067-2	X930F	21
11	unused
12	unused
13	unused
14	unused
15	unused
16	unused
