X950M

Tesla Part Number

1098102-00-A

Connector

HIRSCHMANN 807-446-502

Color

GY

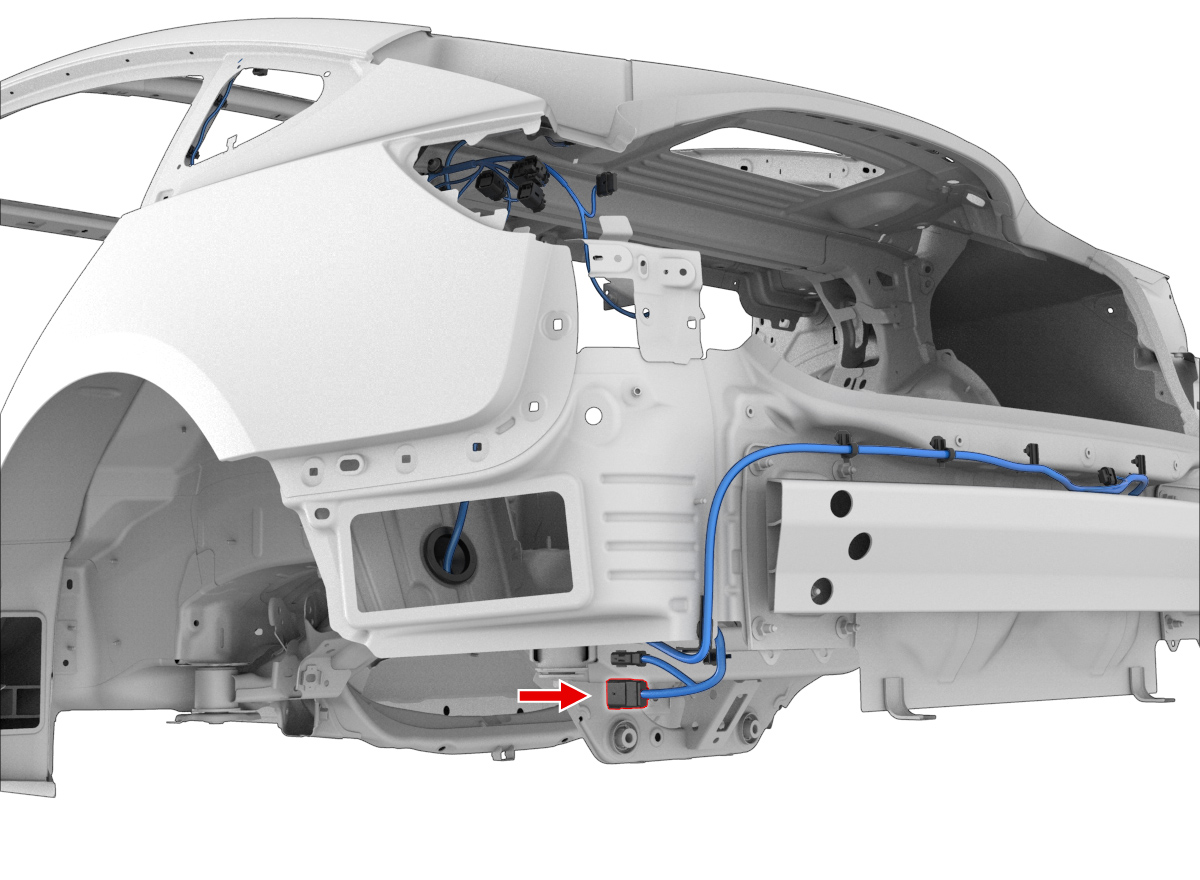

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	2141868-1	1.2x0.6MS	RD	0.13	AMP	967067-2	X167	6
2	AMP	2141868-1	1.2x0.6MS	GY	0.13	AMP	967067-2	X167	5
3	AMP	2141868-1	1.2x0.6MS	YE	0.13	AMP	967067-2	X167	4
4	AMP	2141868-1	1.2x0.6MS	BU	0.13	AMP	967067-2
5	AMP	2141868-1	1.2x0.6MS	WH	0.13	AMP	967067-2
6	AMP	1718758-1	1.2X0.6MS	RD	0.35	AMP	967067-2	X031	33
7	AMP	1718758-1	1.2X0.6MS	YE	0.35	AMP	967067-2	X031	32
8	AMP	1718758-1	1.2X0.6MS	WH	0.35	AMP	967067-2	X031	31
9	AMP	1718758-1	1.2X0.6MS	YE	0.35	AMP	967067-2	X030	26
10	AMP	2141868-1	1.2x0.6MS	VT	0.13	AMP	967067-2	X031	34
11	AMP	2141868-1	1.2x0.6MS	WH	0.13	AMP	967067-2	X096	4
12	AMP	1718762-1	1.2X0.6MS	BK	1.00	AMP	967067-1	G041	1
13	unused
14	AMP	2141868-1	1.2x0.6MS	BN	0.13	AMP	967067-2	X167	1
15	AMP	2141868-1	1.2x0.6MS	GN	0.13	AMP	967067-2	X167	2
16	AMP	2141868-1	1.2x0.6MS	VT	0.13	AMP	967067-2	X167	3
