X954M

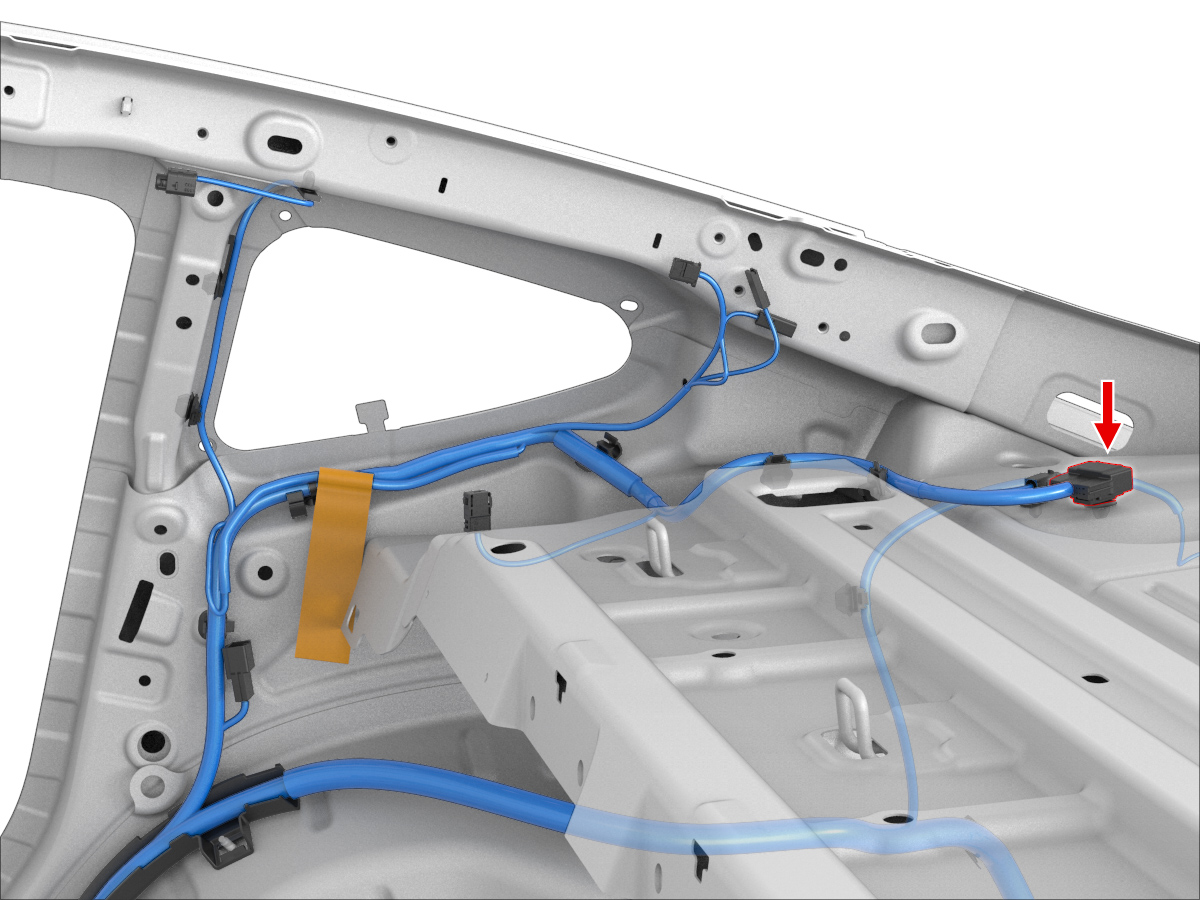

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | SUMITOMO | 8230-4878 | 0.64x0.64M | WH | 0.13 | X050 | 50 | ||
| 3 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | ||||
| 4 | SUMITOMO | 8230-4878 | 0.64x0.64M | BU | 0.13 | X050 | 51 | ||
| 5 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.35 | X050 | 49 | ||
| 6 | unused | ||||||||
| 7 | SUMITOMO | 8100-3623 | 0.64x0.64M | OG | 0.35 | X051 | 15 | ||
| 8 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.35 | X050 | 46 | ||
| 9 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.35 | X051 | 14 | ||
| 10 | unused | ||||||||
