X981M

Tesla Part Number

1042620-02-A

Connector

SUMITOMO 6098-5620

Color

BU

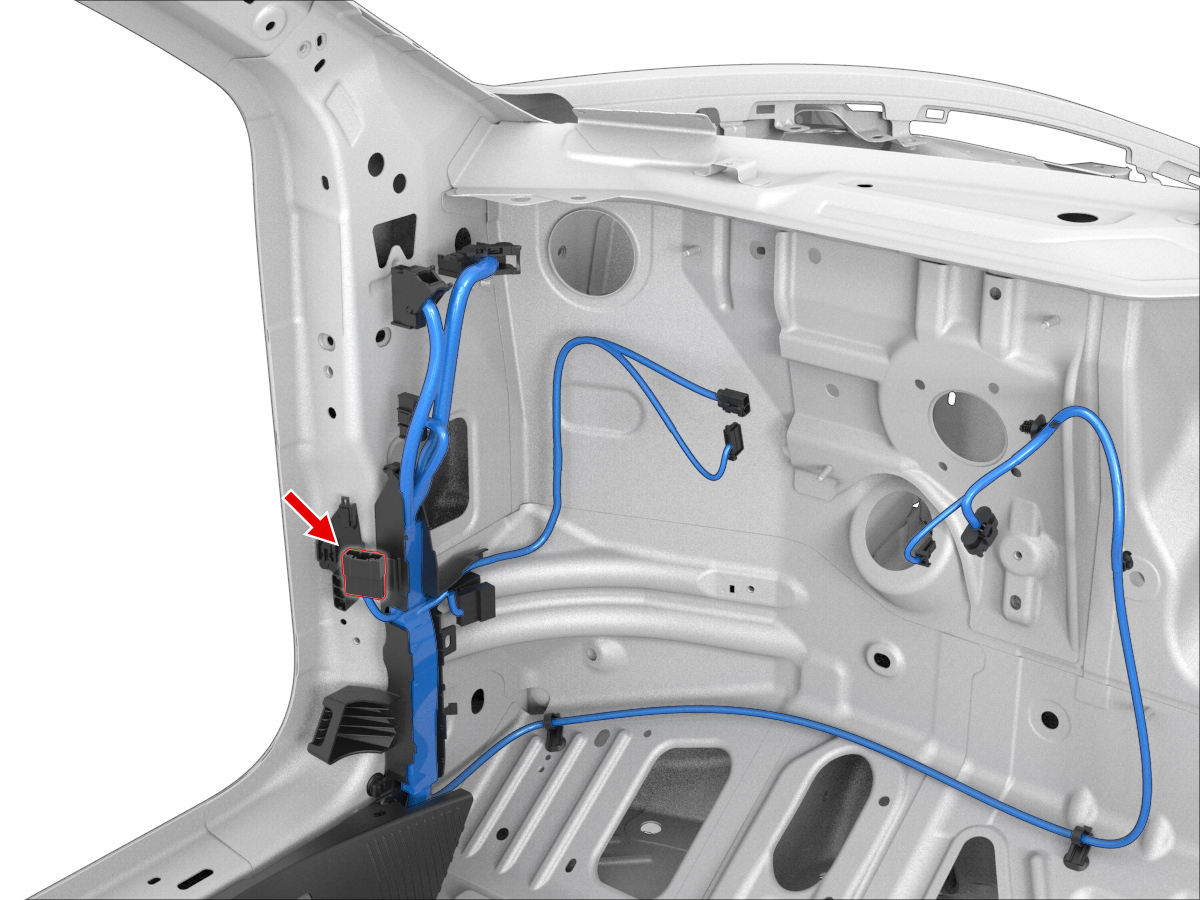

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X031	20
3	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X936F	5
4	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X936F	19
5	SUMITOMO	8100-3623	0.64x0.64M	OG	0.50			X936F	11
6	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X936F	23
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X936F	12
8	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X936F	24
9	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X909M	5
10	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X909M	6
11	unused
12	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X937M	4
13	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X937M	1
14	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X937M	2
15	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X937M	5
16	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X030	16
17	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X937M	3
18	SUMITOMO	8230-4878	0.64x0.64M	BN	0.13			X031	21
19	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X030	36
20	unused
