X050

Tesla Part Number

1090045-01-A

Connector

SUMITOMO 6098-8363

Color

BK

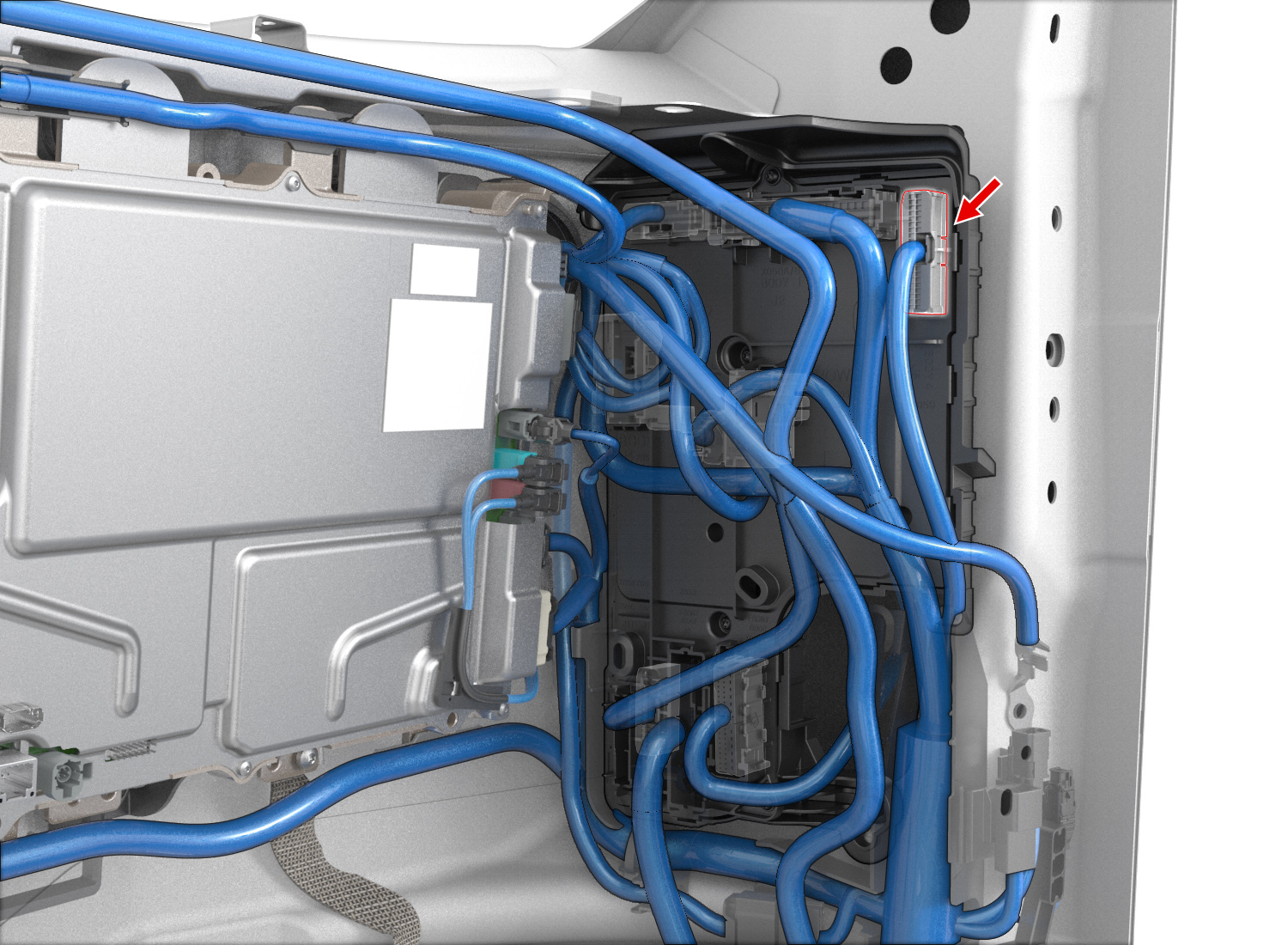

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935M	17
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X935M	16
3	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X226	2
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X226	1
5	unused
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X926M	4
9	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X926M	9
10	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X926M	10
11	unused
12	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X677	2
13	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X686	3
14	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X935M	8
15	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X935M	7
16	unused
17	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X926M	5
18	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X926M	6
19	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X926M	16
20	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X970M	6
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X297	1
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X962M	1
23	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X962M	2
24	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00			X561	1
25	SUMITOMO	8240-0214	1.5x0.64F	OG	2.00			X561	2
26	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75			X171	3
27	SUMITOMO	8240-0213	1.5x0.64F	OG	0.75			X171	4
28	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X171	7
29	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X171	8
30	unused
31	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50			X163	2
32	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X163	1
33	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00
34	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X926M	12
35	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X926M	1
36	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X686	1
37	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X686	2
38	unused
39	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X272	3
40	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X908M	10
41	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35
42	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X272	5
43	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X494	1
44	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X936M	22
45	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X936M	10
46	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X954M	8
47	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35
48	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X098	8
49	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X954M	5
50	SUMITOMO	8240-0339	1.5x0.64F	WH	0.13			X954M	2
51	SUMITOMO	8240-0339	1.5x0.64F	BU	0.13			X954M	4
