X299

Tesla Part Number

1100844-00-A

Connector

AMP 2141404-1

Color

BK

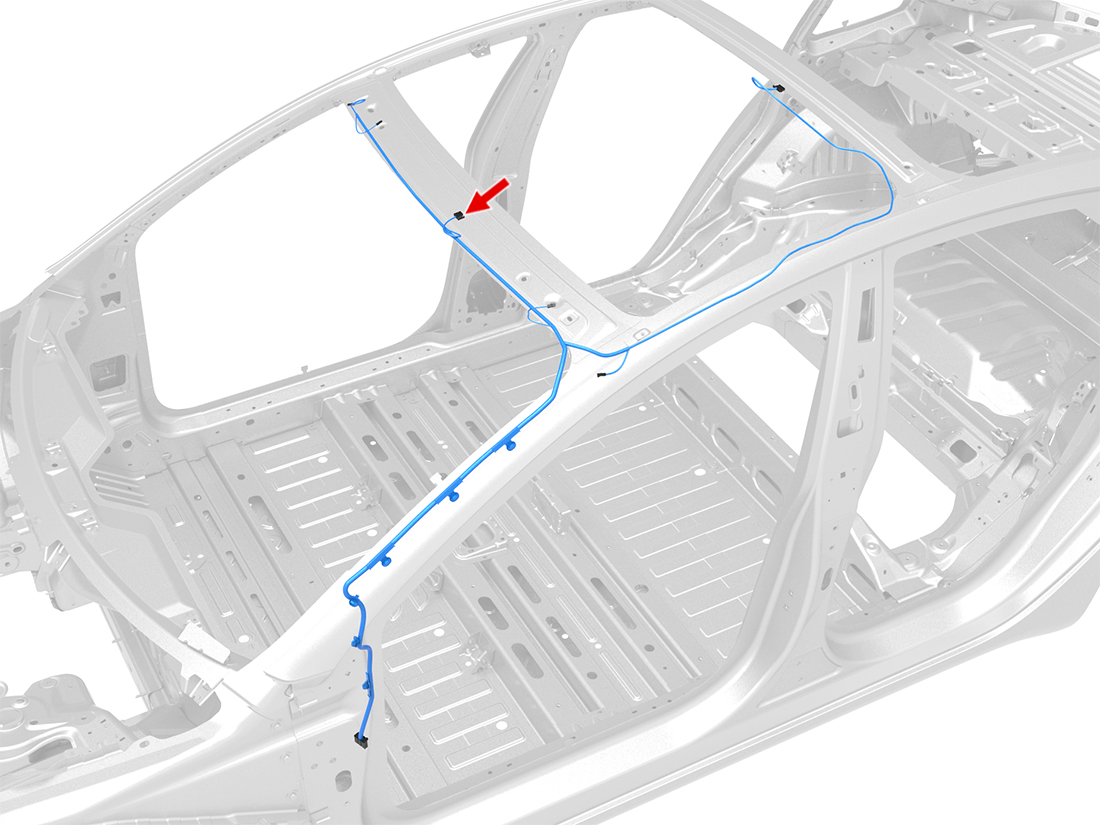

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	2-1703930-1	0.50x0.40F	YE	0.35			X981F	19
2	AMP	1-1703930-1	0.50x0.40F	VT	0.13			X288	8
3	AMP	1-1703930-1	0.50x0.40F	RD	0.13			X290	1
4	AMP	1-1703930-1	0.50x0.40F	BU	0.13			X289	1
5	AMP	1-1703930-1	0.50x0.40F	VT	0.13			X288	2
6	AMP	2-1703930-1	0.50x0.40F	WH	0.35			X981F	17
7	AMP	1-1703930-1	0.50x0.40F	BN	0.13			X981F	18
8	unused
9	AMP	1-1703930-1	0.50x0.40F	YE	0.13			X288	6
10	AMP	1-1703930-1	0.50x0.40F	BU	0.13			X288	4
11	AMP	1-1703930-1	0.50x0.40F	RD	0.13			X288	3
12	AMP	2-1703930-1	0.50x0.40F	GN	0.35			X981F	12
13	AMP	2-1703930-1	0.50x0.40F	BK	0.35
14	AMP	1-1703930-1	0.50x0.40F	BK	0.13			X290	2
15	AMP	2-1703930-1	0.50x0.40F	YE	0.35			X981F	13
16	AMP	2-1703930-1	0.50x0.40F	BU	0.35			X981F	14
17	AMP	2-1703930-1	0.50x0.40F	VT	0.35			X981F	7
18	AMP	2-1703930-1	0.50x0.40F	RD	0.35			X981F	10
19	AMP	2-1703930-1	0.50x0.40F	GN	0.35			X981F	8
20	AMP	2-1703930-1	0.50x0.40F	OG	0.35			X981F	9
