X512

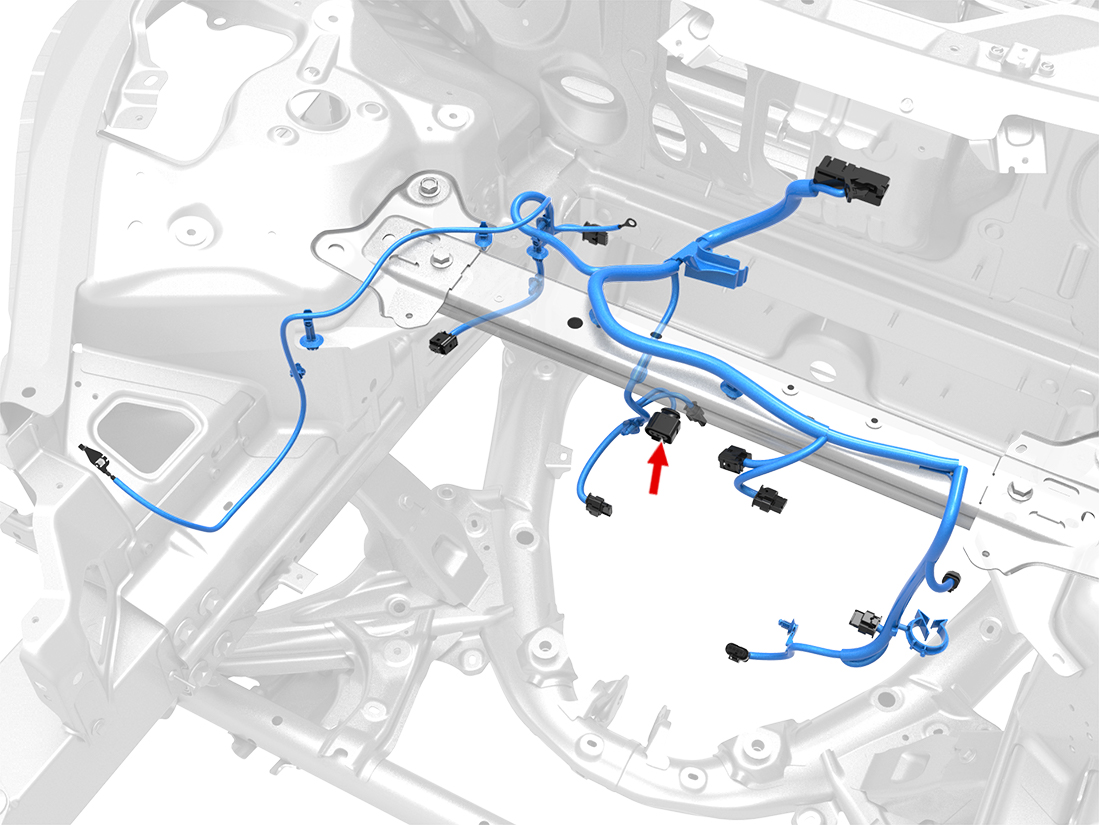

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964282-2 | 2.8x0.8FS | BU | 0.35 | AMP | 963294-1 | X021 | 19 |
| 2 | unused | ||||||||
| 3 | AMP | 964282-2 | 2.8x0.8FS | GY | 0.35 | AMP | 963294-1 | X021 | 40 |
